Lenovo A7-50 A3500 Battery Replacement

Автор: Stefan K
  • Комментарии: 1
Lenovo A7-50 A3500 Battery Replacement

Сложность

Difficult

Шаги

6

Необходимое время

20 - 25 минут

Введение

  1. fLDquAPYO2UKvpng
    fLDquAPYO2UKvpng
    WvKte2GtQ5RFTSwi

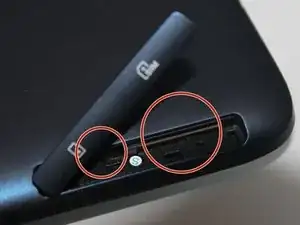

    • Remove SD and SIM card from device

  2. kx1YZnb2HoRwKTjS

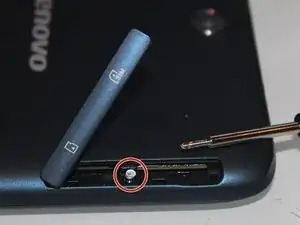

    • Remove screw with a simple coss screwdriver

  3. F6sauRVsfyBBcMfx
    F6sauRVsfyBBcMfx
    p2mHVJdDOCKS4d12

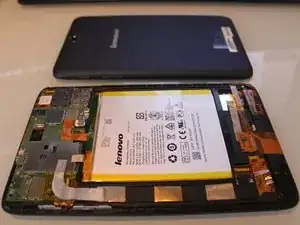

    bjAujbqTNpBFyljg

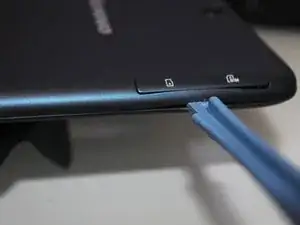

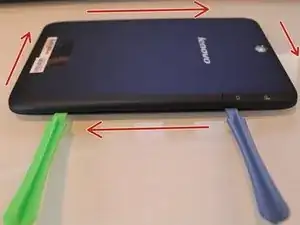

    • Remove cover. Starting from the point where you removed the screw.

    • Disassemble cover clockwise.

  4. eR5Ji1qNdRBXS1Bn
    eR5Ji1qNdRBXS1Bn
    56ScApECEbVuwvhY

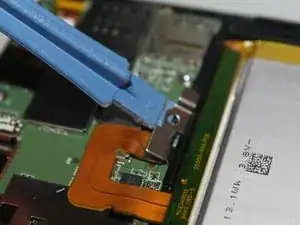

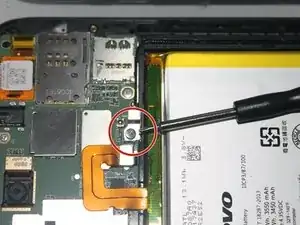

    • Remove screw with simple screw driver

    • Remove metal holder as shown in picture

  5. bRiQTgI3IXCilsKY

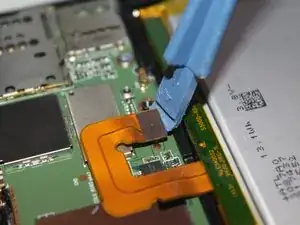

    • Remove connection cable as shown.

  6. YnYSYLwAraSONY4p

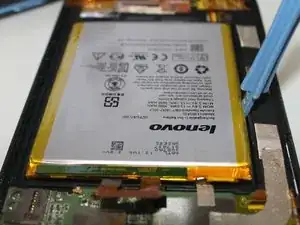

    • Disassemble battery pack. This might require a bit of pressure as it is glued

Заключение

To reassemble your device, follow these instructions in reverse order.
