Lenovo 100s Chromebook-11IBY Webcam Replacement

Автор: Milton Perez
  • Комментарии: 0
Lenovo 100s Chromebook-11IBY Webcam Replacement

Сложность

Moderate

Шаги

6

Необходимое время

6 - 9 минут

Введение

This guide will show how to remove the webcam for the Lenovo 100s Chromebook-11IBY. This removal will allow you to replace or upgrade the webcam for your laptop.

Инструменты

  1. jZMswMSZKQg2uvBd

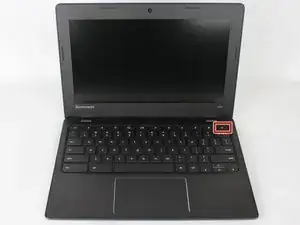

    • Ensure your device is turned off and unplugged.

  2. dcVSKEQ3bGENYSBf

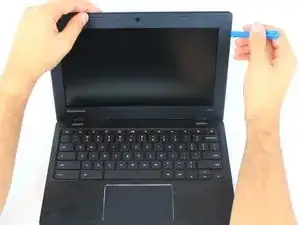

    • Use the plastic opening tool on the recessed notch to gently pry each side of around the screen up.

  3. leoPMPuMopvLK6RK
    leoPMPuMopvLK6RK
    UkaSSTBmH5DIe2Bm

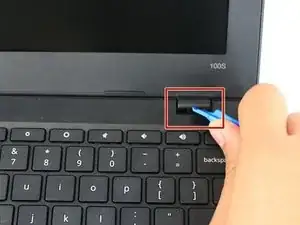

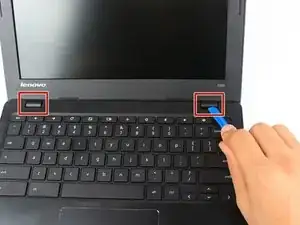

    • Carefully pry up and underneath both the (left & right) hinges of the screen cover.

  4. cZxToFWab1RT4TTC
    cZxToFWab1RT4TTC
    dUqC6CCRuMeM3Skk

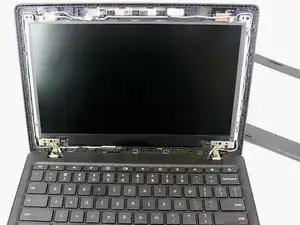

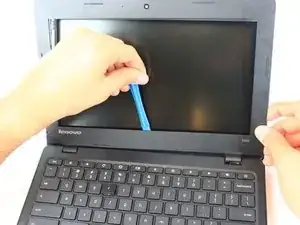

    • Use the plastic opening tool on the inside of the screen plate and again on the sides to gently remove it.

  5. pDFvFkwTDCuh3Evj

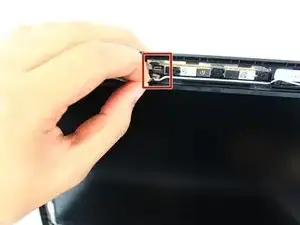

    • Gently unplug the wire connecting the webcam to the laptop.

  6. IPnFVZU4AXGnWDjZ
    IPnFVZU4AXGnWDjZ

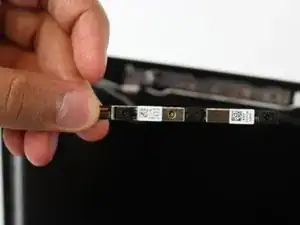

    PvAvBUfUWvVumP5e

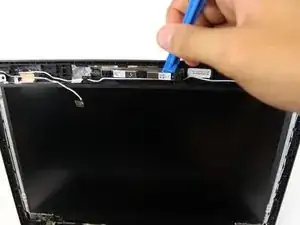

    • Using the plastic opening tool, gently lift the webcam panel from the screen. Then remove it.

Заключение

To reassemble your device, follow these instructions in reverse order.
