Введение

  1. aAUgBOMZLXrAo6cY
    aAUgBOMZLXrAo6cY
    MgWMmNtsdmyipkIt

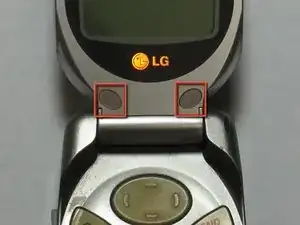

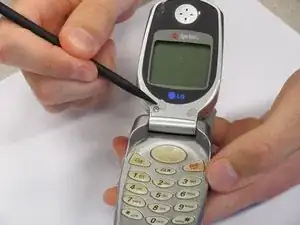

    • Remove the two plastic screw covers below the inside phone screen.

  2. yZMtFwlIfFtjx1Ct
    • Unscrew both screws using a Torx T6 screwdriver.

  3. hVMxEULSjOo53qga
    hVMxEULSjOo53qga
    IdJZgXsCaYbPZF3y
    ZFNaPXmHOsOa5hOJ

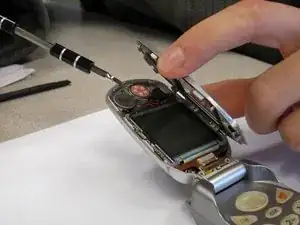

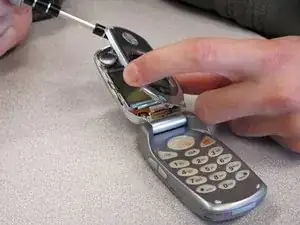

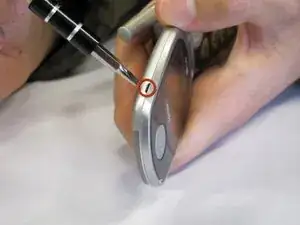

    • Pry off the screen front cover with a 3mm flathead screwdriver.

  4. Wg6pSIFG6wKJSE3G
    Wg6pSIFG6wKJSE3G
    RlCLomI6IJOpYcLB
    dqsIQEOLicUCrJSc

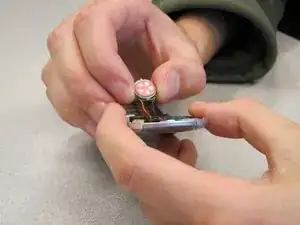

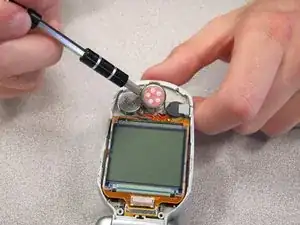

    • Pry off the speaker, which is glued onto the front cover, using a small flathead screwdriver.

  5. xbaHeRHmfBQd4LTl

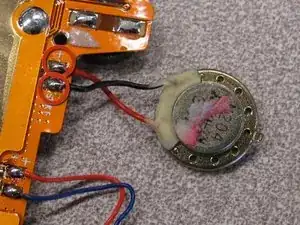

    • Unsolder the black and red wires of the speaker from where they are attached to the base of the screen.

  6. luaC5OPUhBooxjDa

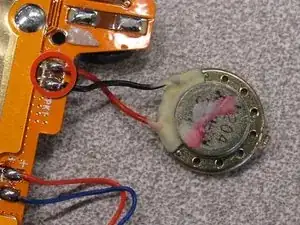

    • Obtain replacement speaker and solder the new black and red wires back to the base of the screen.

  7. qT4p66AERV1g1F2Q

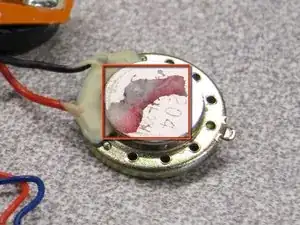

    • Apply glue to the back of the speaker and place it back in its original position.

Заключение

To reassemble your device, follow these instructions in reverse order.
