LG Volt Motherboard Replacement

Сложность

Moderate

Шаги

7

Необходимое время

10 минут

Введение

The motherboard is an essential component of the LG Volt. It is located at the top of the device once the back housing is opened. This guide will show you how to remove the motherboard of the LG Volt.

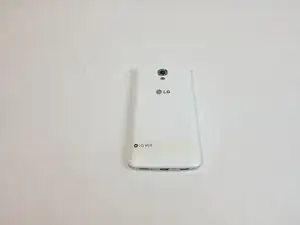

  1. RZLtgL14gwgKdkAE
    RZLtgL14gwgKdkAE
    Lc6gV6RB3dnOJtL4
    burRDQVvCIbTv5in

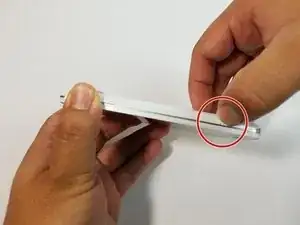

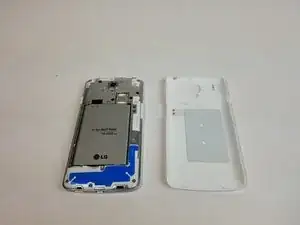

    • Pry back cover with finger in the crease.

    • Remove back casing.

  2. EUoJXb3eq5P1bIwY
    EUoJXb3eq5P1bIwY
    N16fdkAVYqV5S3Sf
    qrMx2ANXEs4rVqyW

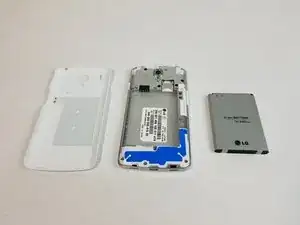

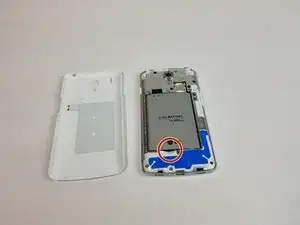

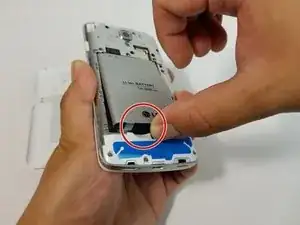

    • With your finger, pry the battery out through the crease made for removal.

  3. 1NrveTIugfiXMXcL
    1NrveTIugfiXMXcL
    YRuVkIoelrlEoydC
    FWVOqF5c1FThTQjL

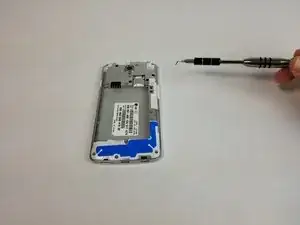

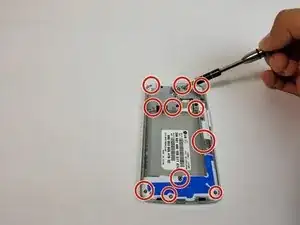

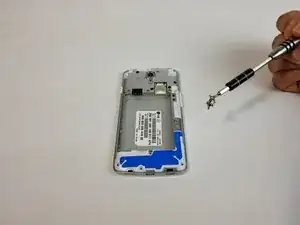

    • Remove all 11 (4mm) screws with the JIS #000 screwdriver

    • There are three screws on top, three above the battery, one next to the battery, one under the battery and three at the bottom of the phone.

  4. HUcgQUmTONEJAljF
    HUcgQUmTONEJAljF
    weeT1QPjfkIwDUxD
    46ri1KIdNm1e4vhW

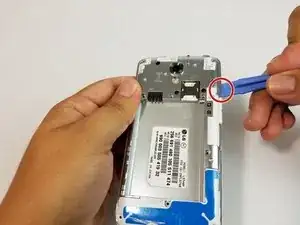

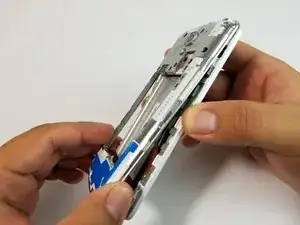

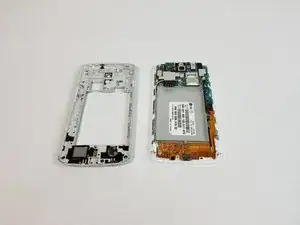

    • Use the plastic opening tool to remove the back housing from the frame of the phone.

  5. Y4wxfalylGnRZHt3
    Y4wxfalylGnRZHt3
    pjgpM1cmIImh4iXI

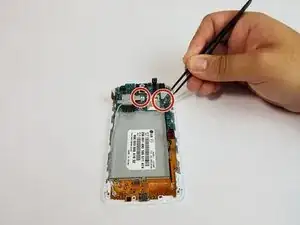

    • Carefully lift all the indicated tabs.

    • Carefully unplug the marked cables.

  6. IePvoQBKWegfderC
    IePvoQBKWegfderC
    AvjKbJ54P3lLoPuL

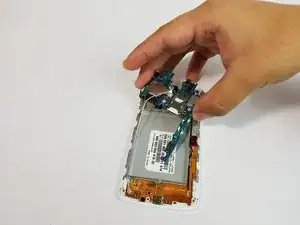

    • Remove motherboard carefully.

  7. 4TKxuEjPou6XFPTb

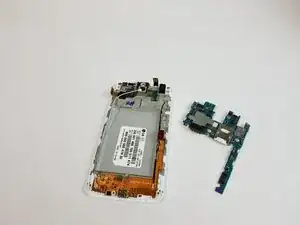

    • Put new motherboard in place of old motherboard.

    • Follow steps 6 through 1 in that order for reassembly.

Заключение

To reassemble your device, follow these instructions in reverse order.
