LG Tribute Touchscreen Replacement

Автор: Aaron Amdall
  • Комментарии: 4
LG Tribute Touchscreen Replacement

Сложность

Moderate

Шаги

6

Необходимое время

30 - 35 минут

Введение

This guide will assist in successfully replacing the LG Tribute touchscreen.

  1. nWxpqPZABHZUwueM
    nWxpqPZABHZUwueM
    JkMjvulTaQOOfEEu

    • Use the plastic opening tool to pry off the back cover.

  2. kgYnOto1tYbI3KqT

    • Lift the battery out of place.

    • When replacing the battery, the (+) and (-) symbols must match up with the phone's charging nodes.

  3. wBkjWPtTkZDEx5dZ
    wBkjWPtTkZDEx5dZ
    FlPXvqQnuEIHedeG

    • Remove eight 4mm screws using a Phillips head 000 screwdriver (PH000).

  4. PSnTCUqAuOIxLAfG
    PSnTCUqAuOIxLAfG
    sQDlwFLXJTejSppS

    • Use a plastic opening tool to loosen the tabs around the edge of the phone.

    • Inserting a thin piece of plastic will help prevent opened tabs from locking back into place.

    • This step can be frustrating, but requires patience. Avoid the temptation to pry the panel loose. Using excessive force may break the delicate tabs.

  5. AdDd6hkIl2WKL4eL

    • Use a plastic opening tool to disconnect the touchscreen from the motherboard.

    • The motherboard will be completely free from the front panel after this step.

  6. TqSVuBEIsDlDknrB
    TqSVuBEIsDlDknrB
    WQdV5kcpdCjFxLDx
    Gl3v4TiPFtfa1SCv

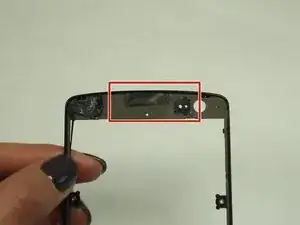

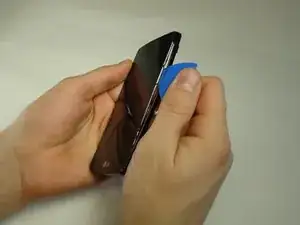

    • Use a thin piece of plastic to carefully peel the frame away from the touchscreen glass.

    • When the frame is completely free, remove all of the glue.

    • When removing the glue, be sure the speaker grill and LED light spacer do not dislodge.

Заключение

To reassemble your device, follow these instructions in reverse order.
