LG Tribute HD Rear Speaker Replacement

Автор: Jerry Koenig
  • Комментарии: 0
LG Tribute HD Rear Speaker Replacement

Сложность

Moderate

Шаги

6

Необходимое время

5 - 10 минут

Введение

This guide will teach you how to properly replace the rear facing speaker in the LG Tribute HD LS676

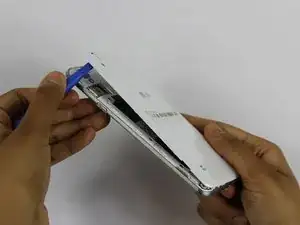

  1. eIsbNCNVLSdZslXK
    eIsbNCNVLSdZslXK
    yDTKlCVt6XHFM16Y

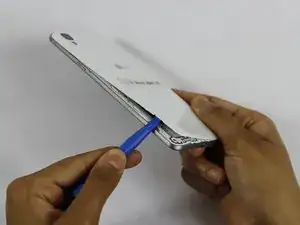

    • Insert a fingernail, or plastic opening tool, into the cutout on the back cover and pry outward to remove.

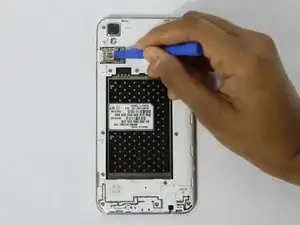

  2. HoaUbftseQaebo1N
    HoaUbftseQaebo1N
    suTHEwFQ2wFKMuHt

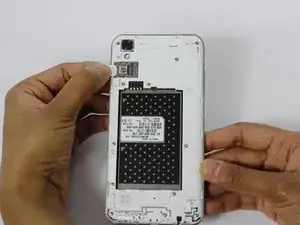

    • Pull the battery out of the phone.

    • Remove the SD Card by sliding the card out as shown.

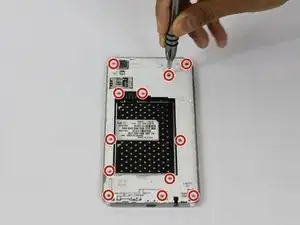

  3. glusfgeLfg3xGKZJ
    glusfgeLfg3xGKZJ
    yXUuxfMgFShgPNxU

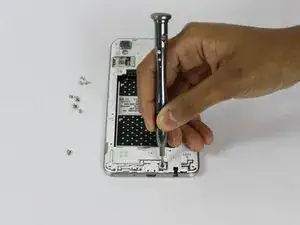

    • Remove the twelve 2mm JIS #00 screws from the mid-frame.

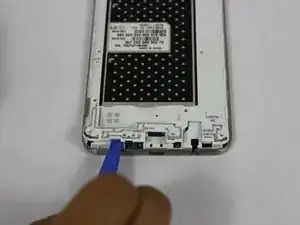

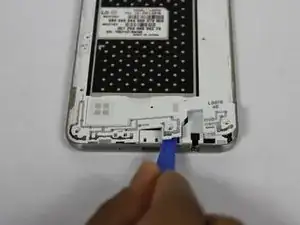

  4. 6CeEROfPn4eBEKro
    6CeEROfPn4eBEKro
    m4rTYJP5KjoWKs6U
    unLrXHSQBAvKVh26

    • Using a plastic opening tool, remove the antenna extender from the mid-frame.

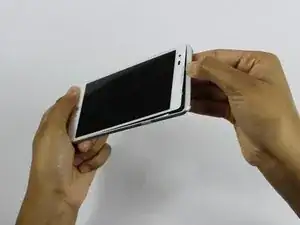

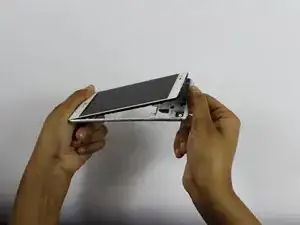

  5. Z1d4L3idPWQHbddV
    Z1d4L3idPWQHbddV
    wE2jscMukPiiD6sD

    • Using your fingers, remove the mid-frame.

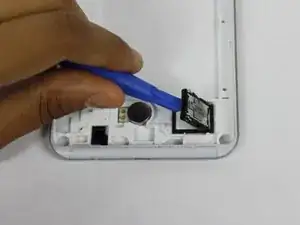

  6. whrNJ4xBTclehSta

    • Using a plastic opening tool, pry the rear facing speaker from the panel.

Заключение

To reassemble your device, follow these instructions in reverse order.
