LG Optimus F3 Back Camera Replacement

Автор: Jonathan Fang
  • Комментарии: 0
LG Optimus F3 Back Camera Replacement

Сложность

Moderate

Шаги

7

Необходимое время

Нет оценки

Введение

This is a replacement guide on how to replace your back camera unit on your LG Optimus F3.

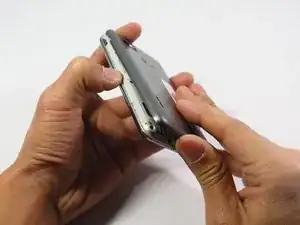

  1. HAOcNVtB42JcJJjn

    • Remove the battery cover. Unsnapping each corner will allow the cover to come off.

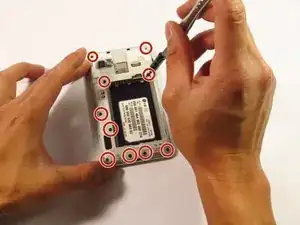

  2. ZlAMNaFZ6CvVGhxn

    • Unscrew the ten 1.0 mm screws on the back.

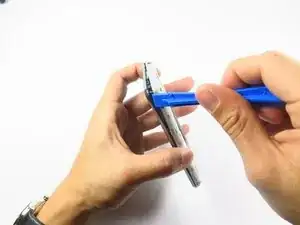

  3. cGAVM5mO3vO5G1ah

    • Separate the rear plastic case by inserting the opening tool between the seams on all sides.

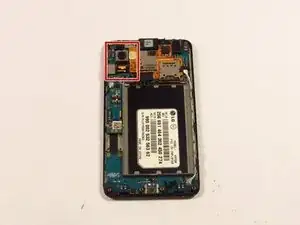

  4. 4FNBiPaRDSiXNHWQ

    • Located at the top left corner is the camera unit.

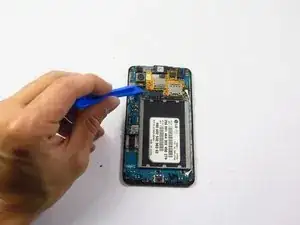

  5. qCHIOT56dOp2LZBg

    • Use a plastic opening tool to detach the connector between the back camera and the motherboard.

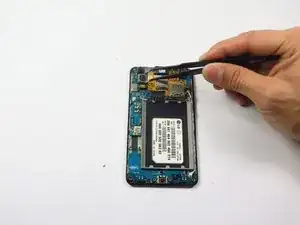

  6. yDe2WYvN2aDJuhqk

    • Use the tweezers to remove the camera by pinching the sides and carefully pulling up.

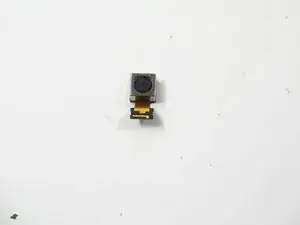

  7. 5uEaZXf4hc2iPvXT

    • There you go !

Заключение

To reassemble your device, follow these instructions in reverse order.
