LG Cosmos Rear Case Replacement

Сложность

Easy

Шаги

5

Необходимое время

10 - 15 минут

Введение

If the rear case is damaged, it is simple and quick to replace. It requires the removal of five screws and prying of the rear case.

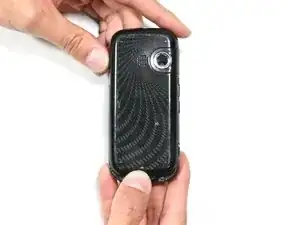

  1. uQQLLiQGlXLUZEgN

    • Apply an upward force to slide the back cover off.

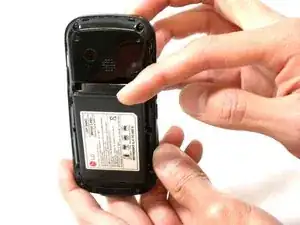

  2. 46sSMLiX3VOC2tNn

    • Use your finger to push down on the top of the battery and pull it out.

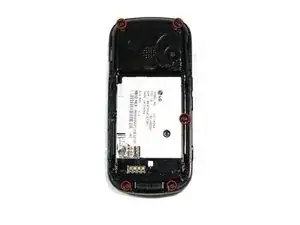

  3. BiIGW3QfOQaNv5Dk

    • Remove the five 3.0mm Phillips #000 screws along the edge of the rear case.

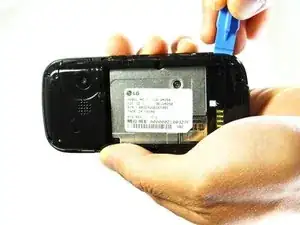

  4. FujYESQLKTLygCAu

    • Use a plastic opening tool to pry the rear case loose.

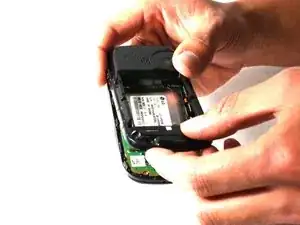

  5. 2QsAP6pwPj6Wabdl

    • Once the rear case is loose, lift it from the rest of the phone.

Заключение

To reassemble your device, follow these instructions in reverse order.
