LG Chocolate 3 Front Faceplate Replacement

Автор: Brenna Yagade
  • Комментарии: 0
LG Chocolate 3 Front Faceplate Replacement

Сложность

Moderate

Шаги

4

Необходимое время

45 минут

Введение

Use this guide to replace the front faceplate of your LG Chocolate 3. Be patient in removing adhesive and mindful of fragile parts.

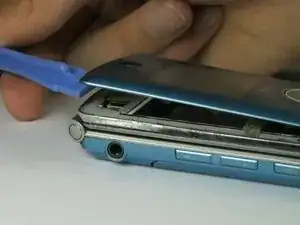

  1. rRWfN3dVkB32TGUT

    • Use the plastic opening tool to lift the front faceplate from the device.

    • The faceplate has adhesive in multiple areas. Loosen the faceplate around all of the edges first to make it easier to remove.

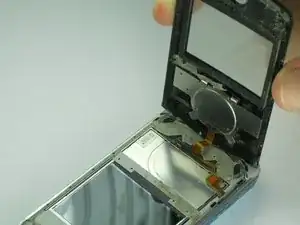

  2. 2O2FUIdNC2lODxJJ

    • The scroll wheel has an orange display data cable attached which may rip from excessive force.

    • Lift the front faceplate up gently.

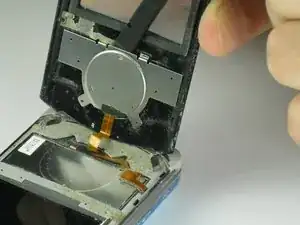

  3. BpaHKe1tcFsqqXTS

    • Be careful not to rip the orange display data cable or drop the scroll wheel on the LCD screen.

    • Use the flat end of the spudger to pry the scroll wheel from the faceplate.

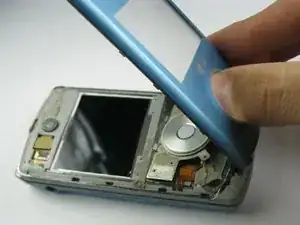

  4. 2U6KfACgjpVSy2Uf
    2U6KfACgjpVSy2Uf

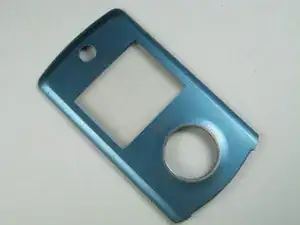

    VkSZrouYXZLhR1Ub

    • Separate the front faceplate from the device completely.

Заключение

To reassemble your device, follow these instructions in reverse order.
