LG Aristo Screen Replacement

Автор: Geobanny Cardenas
  • Комментарии: 1
LG Aristo Screen Replacement

Сложность

Easy

Шаги

9

Необходимое время

30 минут

Введение

The guide was develop to help replace the screen of a LG Aristo, also known as LGMS210 or MS210.

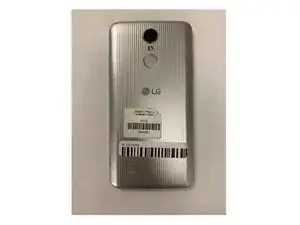

  1. pVgIEObSjpUBeR5A

    • Turn off the device and make sure you are working on a flat, lit surface.

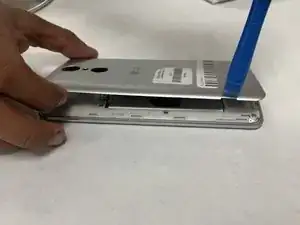

  2. IXFSaIqsQkNfGcap
    IXFSaIqsQkNfGcap
    4oL3CoIZtdmX6wV5

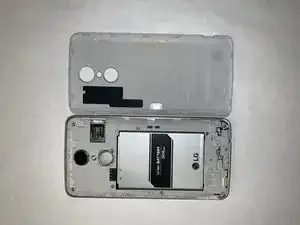

    • Use an iFixit opening tool to pry off the back case.

  3. mp5GRVVL3hZIuRF5
    mp5GRVVL3hZIuRF5
    HKoOZYPlCcrwsadY
    WZqREZpmoNBJI1nc

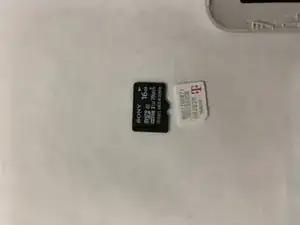

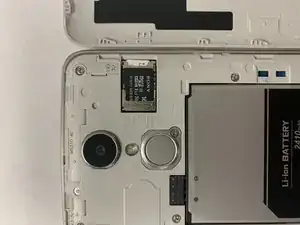

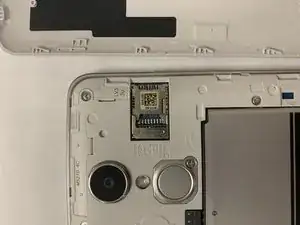

    • Remove the SD and SIM cards by sliding the cards out with your finger.

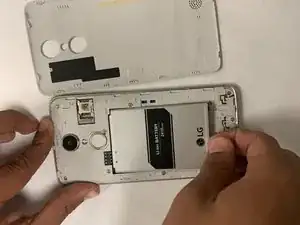

  4. FROWdgOCnnT3dVoQ
    FROWdgOCnnT3dVoQ
    txLgcA6ZKm2TNL1U
    FnVtyteLoFPBKcqb

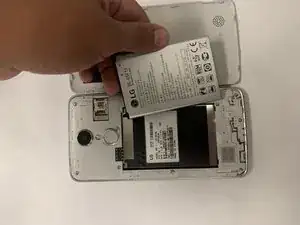

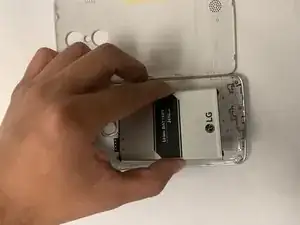

    • Remove the battery by prying it up with a fingernail or opening tool from the bottom edge.

  5. aTJROrRWFgxWVFwS
    aTJROrRWFgxWVFwS
    IFA4qUaBTf1fT2Gk

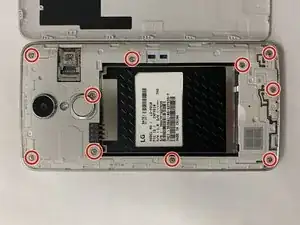

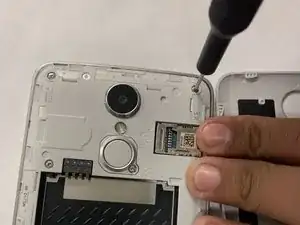

    • Remove the ten screws from the midframe with a Phillips #000 screwdriver.

  6. hv3SvGWSVy6TZFOL
    hv3SvGWSVy6TZFOL
    O5JcPSc26HWREb6Y

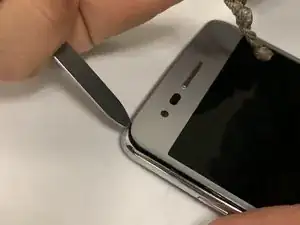

    • Pry up on the screen with a plastic opening tool.

    • Try to avoid using a metal spudger as shown in the images as it has the possibility to damage the screen.

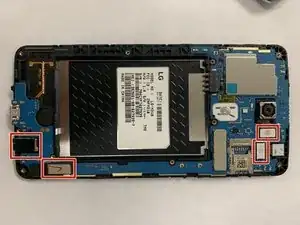

  7. 2emHVoXqMHRUPr3M
    2emHVoXqMHRUPr3M

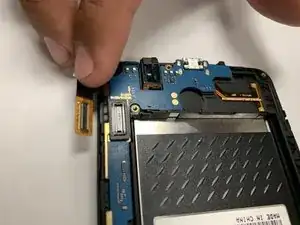

    TcyZFPAr4hLTPxqf

    • Detach the cables from the press fit connectors.

    • There are four connectors in total, they consist of two on the cameras, one on the ear jack, and the one attached to the motherboard.

    • You can lift them up with you finger or you can use tweezers (optional).

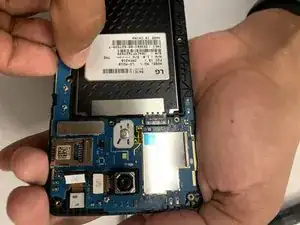

  8. ZT56GxvMNcEeUREN
    ZT56GxvMNcEeUREN

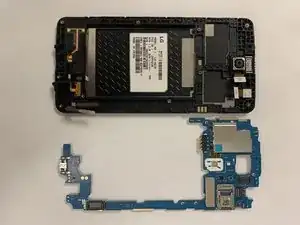

    TCnVnVUV1VBCZObA

    • Gently remove the motherboard.

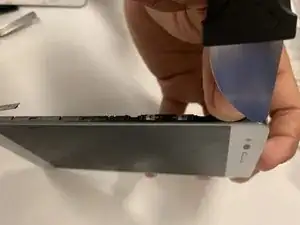

  9. a2TNdRWdpPFQBrUy

    • Replace the screen.

Заключение

To reassemble your device, follow these instructions in reverse order. I hope that these steps have helped you with your issue.

Автор

Geobanny Cardenas

Участник c: 26/08/19

184 Репутация

Один комментарий

Do i need Loca Glue to replace the outer Glass?

chuck -
