Kyocera Hydro Life Main Speaker Replacement

Автор: cory pritchard
  • Комментарии: 0
Kyocera Hydro Life Main Speaker Replacement

Сложность

Difficult

Шаги

8

Необходимое время

1 час

Введение

Follow this guide if you do not hear broadcast audio from your phone, such as media, speakerphone, ring tones, or other audibles. If this guide is not followed exactly, it will ultimately result in a damaged device. Ensure audio issues are not software related (programs being muted, master volume muted, other settings) before proceeding.

  1. R1Kljosy2c26ihlg

    • Remove back cover.

    • Pry from the gap above charger port as displayed.

  2. Oi6B5nRrgZnB4bRZ

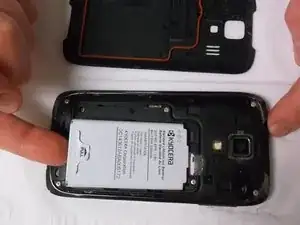

    • Remove battery.

    • Pry from charger port side.

  3. qavEb6HM6NPoGuOb
    qavEb6HM6NPoGuOb
    jTOsNhIauBqi4RpS

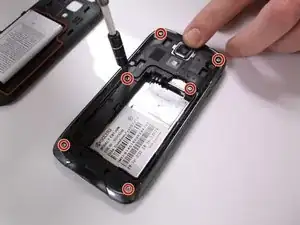

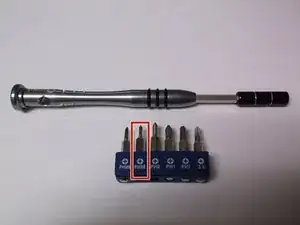

    • Use a PH00 screwdriver to remove the 6 screws from the mid-frame.

    • 4 screws located around the border of the phone, 2 located around the battery terminal.

    • Press down and firmly turn screws to prevent slippage. Avoid letting the screw driver slip, as this will result in stripped screws and prevent further progress.

  4. mRZXSCJEkl5brWL4
    mRZXSCJEkl5brWL4
    QlJNTnnKqPUtE2y2

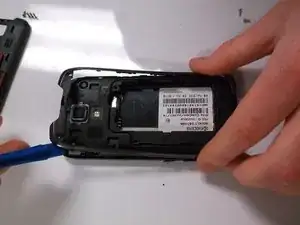

    • Remove back panel trim.

    • Use the image when prying to effectively dislodge plastic clips.

    • The trim piece is extremely delicate, do not use the phone as leverage when prying or plastic will be broken.

  5. D5b1ZVVltFxjoLFY

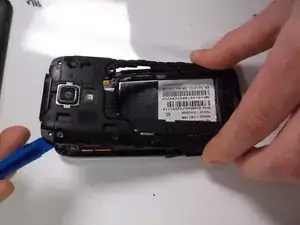

    • Remove back panel, pry in same locations as trim panel in the previous step.

    • Lift up with pry tool. If you use the phone as leverage, the outer plastic ring will bend and break.

    • Industrial glue holds this plastic layer, so expect difficulty. Use a second pry tool to cut away glue and assist in removal.

  6. cUfANpNoUlkK5uqI

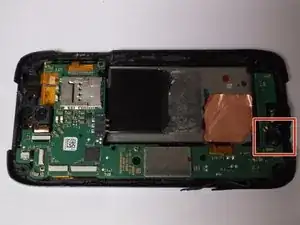

    • Use tweezers to pull away insulation from speaker, and expose positive and negative terminal points.

    • Do not remove the white manufacture sticker contrary to what is pictured.

  7. BlSOvFcGhVrHA2s2
    BlSOvFcGhVrHA2s2
    dM3elZuSWE2i1BKB

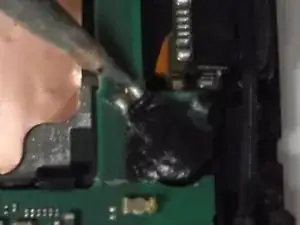

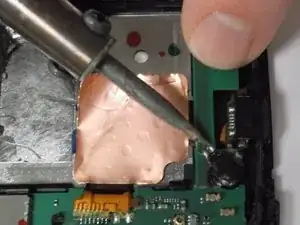

    • Plug in solder iron, allow 2-4 minutes to come to temperature.

    • Apply solder iron to each speaker terminal, and melt connection.

    • When connection is melted, use tweezers to remove defective speaker from the motherboard.

    • Solder cools quickly, so the connections will solidify without heat.

    • Avoid dripping, adding, or removing solder to prevent short circuitry.

  8. Fw4BrqHJQEBiDMRV
    Fw4BrqHJQEBiDMRV
    DtIJIcF5YGG6kJfW

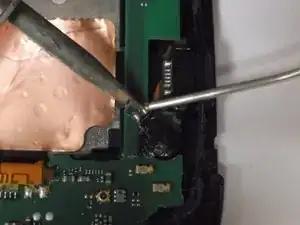

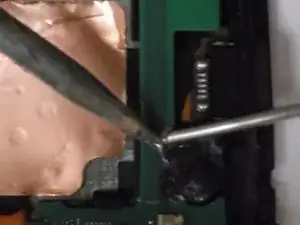

    • Insert new speaker into speaker slot.

    • Solder new positive and negative terminals.

    • Align connection points, apply solder iron to motherboard connection points, then apply solder to heated connection for precise application.

Заключение

To reassemble your device, perform steps 5 through 1 constructively.
