Kurio Motion Audio Jack Replacement

Автор: Dillon H.
  • Комментарии: 0
Kurio Motion Audio Jack Replacement

Сложность

Difficult

Шаги

5

Необходимое время

Нет оценки

Введение

Is the audio for your headphones distorted or not working? You will have to replace it. This will require you to solder so please refer to this guide to do so.

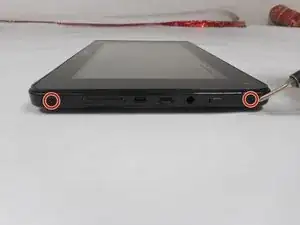

  1. lKIRtTgUEl1saGLx
    lKIRtTgUEl1saGLx
    kHK2xhMRCoSobZTO

    • Use a Phillips #00 Screwdriver to unscrew the four 5mm screws.

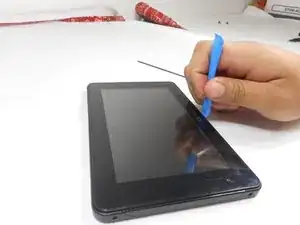

  2. DAZKrudoNHBcaPcS

    • Use an Ifixit opening tool to seperate the screen from the back.

    • The screen is connected to the back by tabs on the inside of the device. If you pry too hard, they may break.

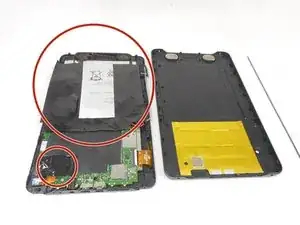

  3. aXMZPcoiZhJZBYIE

    • Remove the tape from the edges of the battery and the small piece on the motherboard.

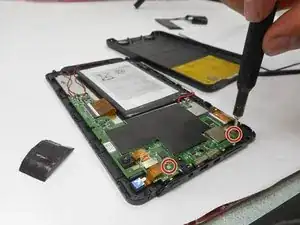

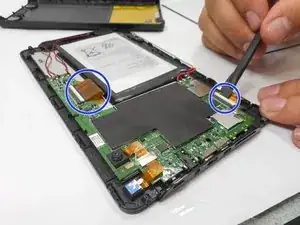

  4. 5sWEPNxA2kSQmQtV
    5sWEPNxA2kSQmQtV
    ZdN2q1BiUaTaDToU

    • Remove the two 5mm screws from the mother board.

    • Remove the connectors by lifting the tabs and pulling gently.

    • Desolder the connections holding the audio jack. To do so, refer to this guide.

Заключение

To reassemble your device, follow these instructions in reverse order.
