Kodak Easyshare V1003 LCD Display Replacement

Автор: Vanessa Soares
  • Комментарии: 1
Kodak Easyshare V1003 LCD Display Replacement

Сложность

Moderate

Шаги

10

Необходимое время

Нет оценки

Введение

This guide provides step-by-step instructions for removing and replacing the LCD display. There are two tools required and no safety precautions needed.

  1. rEcv6wNxNUX52V1U

    • Turn off camera by firmly pressing the power button that is located on the top of the camera.

  2. bNIyGBKXZFpPYScq

    • Position camera with the bottom facing up.

  3. VBMfkJ4p5mhTvFdg

    • With your finger, slide the battery cover in the direction of the open arrow.

  4. Mi4H5Mjj6maEBbAX

    • Lift the battery cover up gently.

  5. HbRo3vfBFZQXkVjh
    HbRo3vfBFZQXkVjh
    cJrwG4WByXFhsvHm

    • Gently push the battery down until a click is heard. Battery should release and be lifted out of slot.

  6. K2jn1sSo32rmTZCp
    K2jn1sSo32rmTZCp
    IGojiQZYVKZU2eb2
    wQoickv1no4TmguF

    • Use a J00 screwdriver to remove the five exterior screws.

  7. OTivqBaSkXkCstcL
    OTivqBaSkXkCstcL
    tfGOpSgCG4Uwlis1
    bIfTLSTOTC5JuMMy

    • Use a plastic opening tool to pry off the back casing.

  8. egSXebJa2HDtLnGJ
    egSXebJa2HDtLnGJ
    WtLI1IxUBv3VX1gQ
    nIwf6cmcfhY1e1oK

    • Completely remove the back casing from the device.

    • Using a plastic tool to remove the bottom.

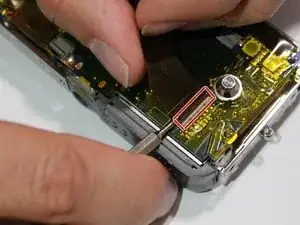

  9. gbYgipFKtdWbBylq

    • Remove the LCD display by unplugging the connector.

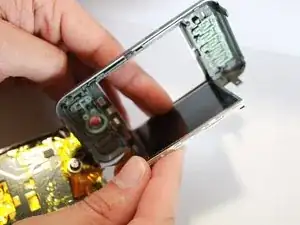

  10. QWgYP1EhMMAvXWmt

    • Take apart the LCD display from the back case.

Заключение

To reassemble your device, follow these instructions in reverse order.
