Kobo Arc K107 Speaker Replacement

Автор: Luke Maalouf
  • Комментарии: 0
Kobo Arc K107 Speaker Replacement

Сложность

Moderate

Шаги

6

Необходимое время

15 - 30 минут

Введение

This guide is meant for anyone attempting to replace their faulty speakers on their Kobo Arc 7, no need to worry about being tech-savvy or not.

Инструменты

  1. TEsR2LKhNFRFIXUU

    • Peel the back cover off of the Kobo Arc by finding the lip in the cover and pulling back on it.

  2. ipKExFepkd3BhWmV

    • Remove the screws from the midframe.

  3. lYTjhEiRNsrUwNML

    • Use a nylon spudger to pry up the battery from the device.

    • It will give some resistance as it is glued down.

    • Always use plastic or nylon prying tools around the battery. Metal tools can puncture a battery, potentially causing a fire.

  4. LUXbiiDRxYVtqURZ

    • Unplug the battery connector from the rest of the tablet.

    • Remove the battery from the tablet.

  5. XKbyQPPSOZOSYrZs
    XKbyQPPSOZOSYrZs

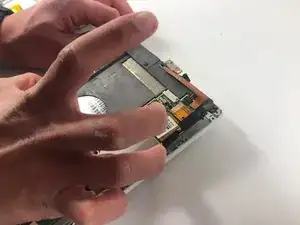

    PL6RaJ6je1yR11LC

    • Remove the screws that are attached to the grey plastic layer.

    • Remove the gray plastic layer.

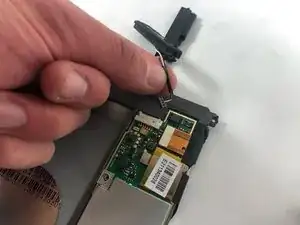

  6. QudYkKgKVrQdcJky

    • Disconnect the speakers from the tablet.

Заключение

To reassemble your device, follow these instructions in reverse order.
