Введение

A guide on how to replace the speaker output connector cables in the Kicker CXA 300.1

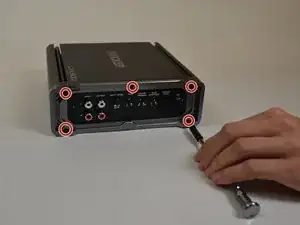

  1. xajNJLhX1DklebFK

    • Remove the five T10 Torx screws on silver plate.

    • remove silver face plate

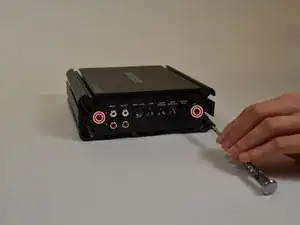

  2. FDBs16BUuqMHuoXm

    • Remove the two T10 Torx screws.

  3. WNJvi2FPdANidQ2E

    • Remove the six T10 Torx screws from the bottom.

    • Remove the bottom cover.

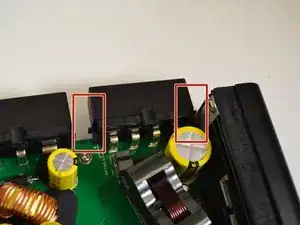

  4. UQdeutsNi6UQWJMk

    • Pull apart black tabs on plastic housing for output connections.

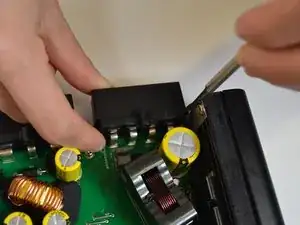

  5. VlcklfRjHxojUgMh

    • Desolder the four audio jack connectors from the motherboard.

Заключение

To reassemble your device, follow these instructions in reverse order.
