Kicker CXA300.1 Bass Remote Replacement

Сложность

Moderate

Шаги

4

Необходимое время

10 минут

Введение

A guide on how to replace the bass remote in the Kicker CXA300.1

  1. gA6v5mmeNsTOTybV
    gA6v5mmeNsTOTybV
    ZoNABDnYThSC5QZx

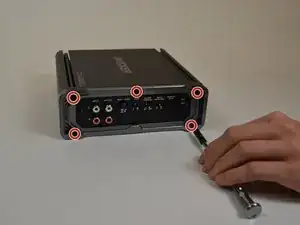

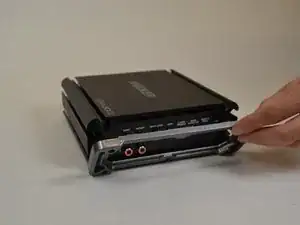

    • Remove the five T10 Torx screws on silver plate.

  2. renRWGLjiIuHHeOV

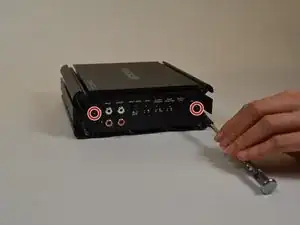

    • Remove the two T10 Torx screws from the faceplate.

  3. y2OhcTd6nWOTh5a6
    y2OhcTd6nWOTh5a6
    wCtZpaXKTACGRdnk

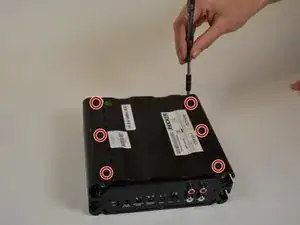

    • Remove the six T10 Torx screws from the bottom.

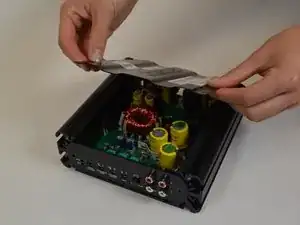

    • Remove bottom panel.

  4. AZQpd1rQBPp5NfFE

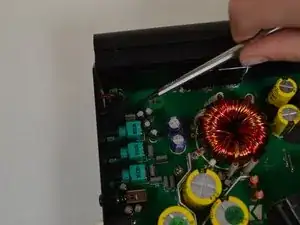

    • Desolder the remote receiver from the motherboard.

Заключение

To reassemble your device, follow these instructions in reverse order.
