Keurig K70 Base Plate Replacement

Автор: Dominik Smith
  • Комментарии: 0
Keurig K70 Base Plate Replacement

Сложность

Very easy

Шаги

3

Необходимое время

6 минут

Введение

This guide will show you how to remove the base plate of the Keurig K70. Removing the base plate is necessary to access most of the internal components for further repair of the device.

Инструменты

  1. MTJFnWOOmuFeQSAU

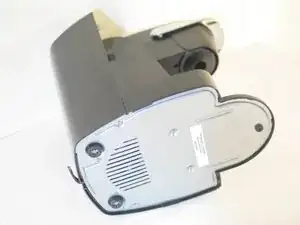

    • Rotate the Keurig on its side so that the base plate is accessible.

  2. fxeIRBZxa5AYx5tb
    fxeIRBZxa5AYx5tb
    wf6vQAA1XNTWE5pF

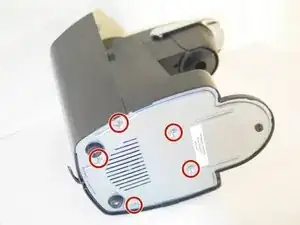

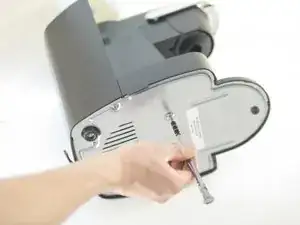

    • Remove the five 12mm Phillips #2 screws from the base plate.

  3. WBw4OWfQjiJ4YiEG

    • Remove the base plate by sliding it towards the power cord and then out.

Заключение

To reassemble your device, follow these instructions in reverse order.
