Введение

The face plate in a Kenwood KDC-BT565U can be removed to either keep separate from a vehicle, perform a hard reset, or to repair/replace a component. This guide will show you how to replace the face plate.

  1. 1YeglOXTEBVthbGG

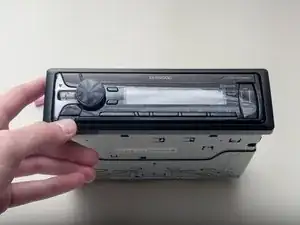

    • Press the eject button on the bottom left corner of the face plate.

  2. YY2AZG4xbVUhNHTm
    YY2AZG4xbVUhNHTm
    vDWPP3ofgFH2PQyO
    2wd4yIIiOE1HHLoP

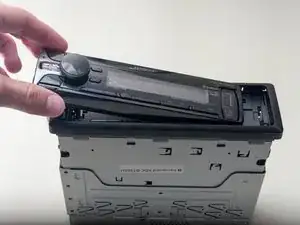

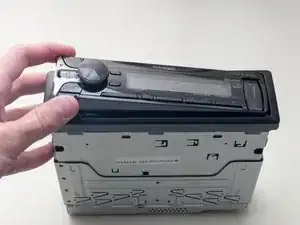

    • Begin by slightly lifting the face plate out from the side located by the release button.

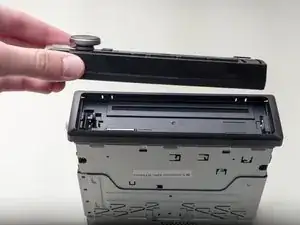

    • Slide towards the side of the eject button, then completely lift out.

Заключение

To reassemble or replace, follow the steps in reverse order with the working faceplate.
