Введение

The Kyvol Cybovac E20 contains a front bumper with sensors to prevent the vacuum from hitting walls or furniture. This bumper can become obstructed by debris, so try cleaning it before anything else. If the problem persists, use this guide to replace the broken front bumper.

Инструменты

  1. tlOEQSsAAuQiyYNL

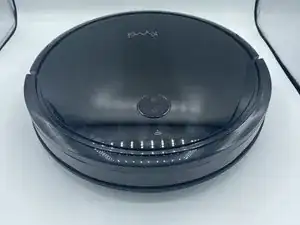

    • Start with the vacuum on a flat surface.

    • The power button should be on the side closest to you.

  2. yZj43rPB1BBePDMO
    yZj43rPB1BBePDMO
    Ye12IQFtENySFmQQ

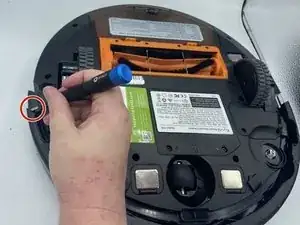

    • Flip the vacuum over so the bottom is facing up.

    • The dust bin should be on the side furthest from you.

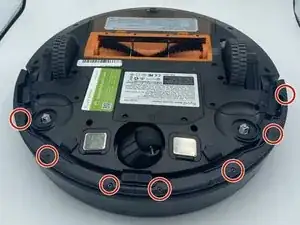

    • Remove the eight 1 mm screws holding the bumper in place using a Phillips #00 screwdriver.

  3. ho6kVnLAAnWJ4IJJ
    ho6kVnLAAnWJ4IJJ
    3KKYIgWuMRGQM4Yx

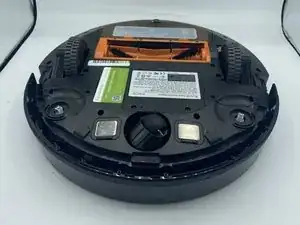

    • Remove both sides of the bumper and replace them with new ones.

Заключение

To reassemble your device, follow these instructions in reverse order.
