John Frieda JFHA5R Reset and Test Buttons Replacement

Автор: Lindsey Farley
  • Комментарии: 0
John Frieda JFHA5R Reset and Test Buttons Replacement

Сложность

Moderate

Шаги

5

Необходимое время

15 минут

Введение

The reset and test buttons can stop working over time. This replacement guide will show how to properly replace the reset and test buttons.

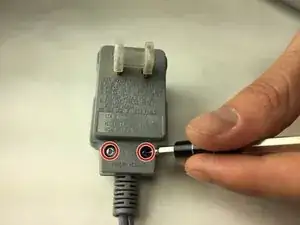

  1. WjH1HVNMFKHJbwZX

    • Make sure the Salon Shape brush is unplugged, and do not use metals once you have pried open the power plug.

    • Unscrew the two screws using a 3.0 mm bit triangle head on the back of the power plug.

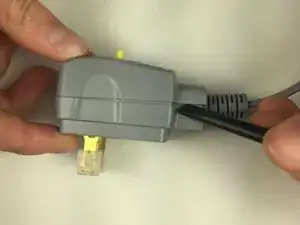

  2. PIGdK6mfWi3rKKSg

    • Use the spudger along either side to open up the power plug.

    • As the power plug is opened, the caution sticker on top of the plug will rip.

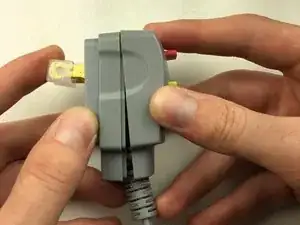

  3. DLUCxMETdEeZkBYv

    • Slide slightly up to remove the back cover of the power plug.

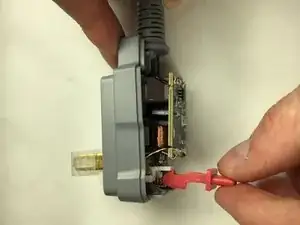

  4. 5MtbF2TC3iaIGmLo

    • Remove the red reset button by pulling it to the right.

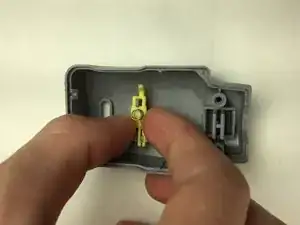

  5. alsTe2Xu23fHXWNN

    • Pull slightly left then up to remove the yellow test button.

Заключение

To reassemble your device, follow these instructions in reverse order.
