JBL Tune 720 BT Headphones Left Speaker Driver Replacement

Автор: Brandon DeFaria
  • Комментарии: 1
JBL Tune 720 BT Headphones Left Speaker Driver Replacement

Сложность

Easy

Шаги

4

Необходимое время

5 - 15 минут

Введение

Is your left side of your JBL's not working? Here's a repair guide of how to replace it!

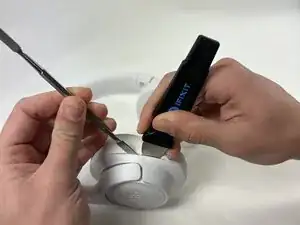

  1. IEt2DlOCTuDnxcE4

    • Insert the Jimmy into the slit of the ear cup.

    • Insert the metal spudger with the Jimmy and use the spudger to pry the ear cup off.

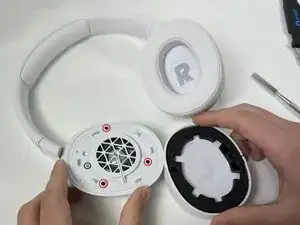

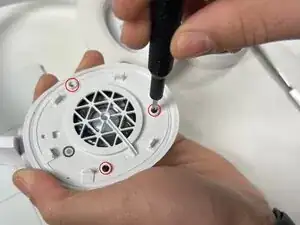

  2. XNJuXvC6Pg5MblMI
    XNJuXvC6Pg5MblMI
    a2OrOjUXC6exkejL

    • Remove the three screws using a Phillips #0 screwdriver.

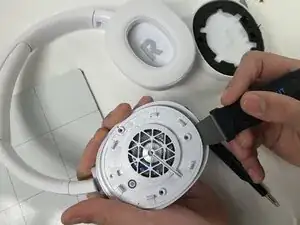

  3. NkuICoEGxhmcWYWN

    • Use the Jimmy to pry out the white covering from the headphones.

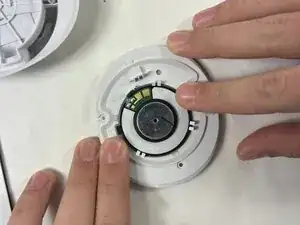

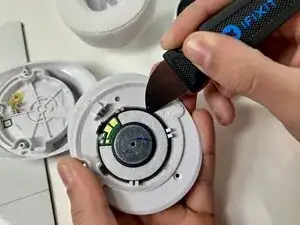

  4. FFe33fQVapIZWbBK
    FFe33fQVapIZWbBK
    3WxMtNo2Zl2taaCp

    • Use the Jimmy to pry out the speaker driver.

Заключение

If you ever get stuck in reassembly, work in reverse order of how you took it apart!
