Ivation IVWPDC20Y Motherboard Replacement

Автор: Wendy Jones
  • Комментарии: 0
Ivation IVWPDC20Y Motherboard Replacement

Сложность

Very difficult

Шаги

19

Необходимое время

1 - 3 часов

Введение

Use this guide when you need to replace the motherboard.

  1. 4JokII3XJheG6gXG

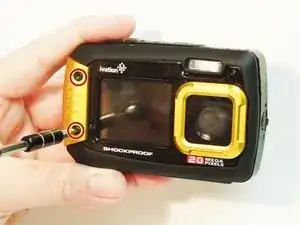

    • With the H2.0 bit screwdriver, remove the two screws on the yellow waterproof cover

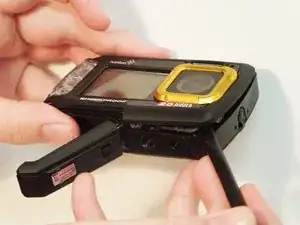

  2. KOtkIpfCyrrPuRF3

    • Apply a plastic opening tool to each of the corners and gently remove the casing

    • The front casing is held down by adhesive and may require additional work to remove

    • Apply just enough force to undo the inner latches to make sure not to damage the waterproof seal

  3. TAHWjyYmxfqJPFQh

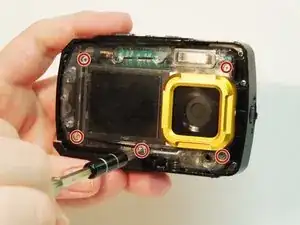

    • Remove the five silver screws from the inner casing using the PH00 screwdriver bit

  4. CEjvCG4OOLVOPLOK

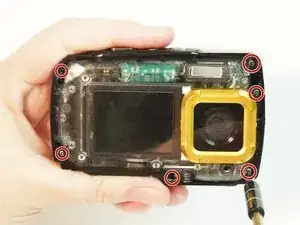

    • Remove the six screws from the edge of the clear inner casing with the PH00 screwdriver bit

    • These screws are very small and easy to strip so apply consistent pressure when removing them

  5. Xk63cORLuiUYpcka

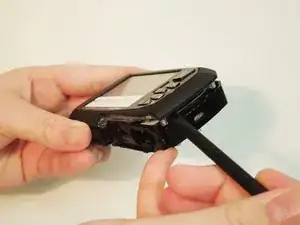

    • Pry off back outer casing using the black spudger or the blue prying tools

  6. 4TVEB2A4nQfoZxek

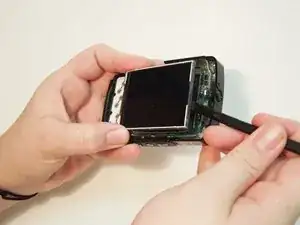

    • Carefully remove the screen from the silver casing using a prying tool or the black spudger

    • There is adhesive in the center of the screen, be sure not to bend it when applying pressure

  7. rY4Uq2dpTGD4c1sD

    • Gently push out the pins holding the orange tape down using the pointy end of the spudger

    • Screen and orange tape should slip out as a whole

  8. SUoNLSmDNSm4ywpX

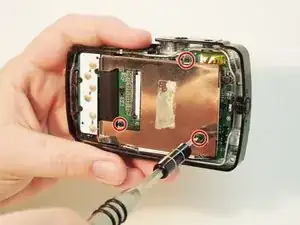

    • Remove three screws holding the silver screen casing to the motherboard using the PH00 bit screwdriver

  9. vrKubQAaNIiGCHjV

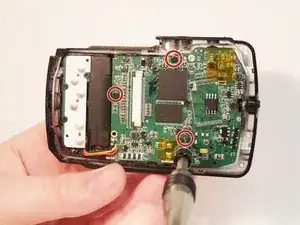

    • Remove three screws holding the motherboard into the casing using the PH00 bit screwdriver bit

  10. 1LLi2wpqIcQIPken

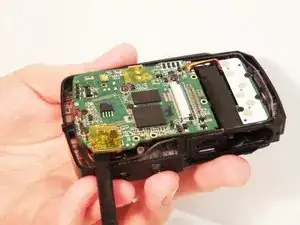

    • Gently lift the corner of the motherboard out

    • Everything should come out as one component free of the casing

  11. IwdPVTVpGFwCfgYX

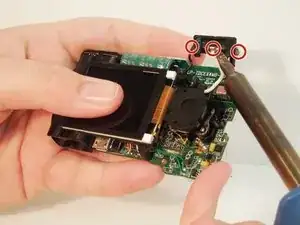

    • Remove the soldering on the three wires holding the flash bulb

    • The wires are different colors: red, white, and black

  12. qRBgpD4Rnsd5G11i

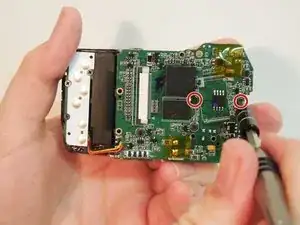

    • Remove the two screws holding the lens assembly to the motherboard using the PH00 bit screwdriver

  13. so2WrYdvujAr4qxw

    • Remove the soldering on the 3 wires that are connected to the lens unit

  14. jnWMUtej1KHrW4i2

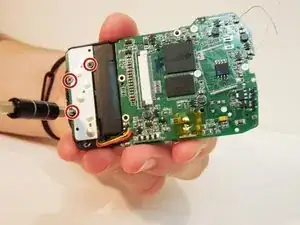

    • Remove the three screws holding the button sensors to the battery casing using the PH00 screwdriver bit

  15. QRajQqU1QZvHpBO3

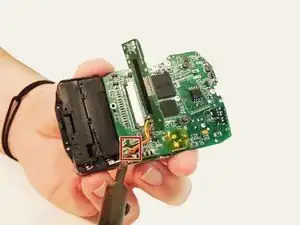

    • Remove soldering on the grouping of wires connecting the button sensors

  16. WGYFrPRdDObX1YNx

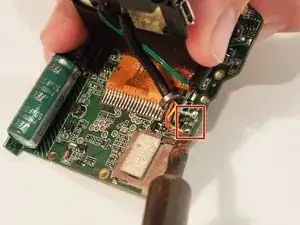

    • Lift screen to reveal wires underneath

    • Remove soldering connecting screen to the motherboard

  17. FPcW2GDSsRklNFJm

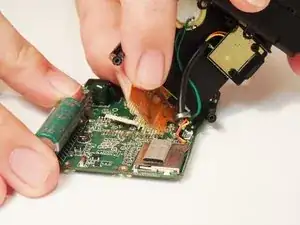

    • Gently pull orange tape from the motherboard

  18. JU1XLZsqIUWI5iuV

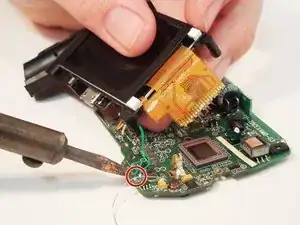

    • Remove soldering from the two green wires connected to the motherboard

  19. UB2TBWjJC2BkTUTi

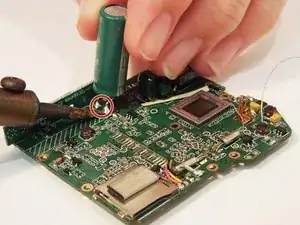

    • Gently bend the capacitor upwards

    • Remove soldering from the two connectors

Заключение

To reassemble your device, follow these instructions in reverse order.
