Ivation IVWPDC20Y Flash Bulb Replacement

Автор: Wendy Jones
  • Комментарии: 0
Ivation IVWPDC20Y Flash Bulb Replacement

Сложность

Difficult

Шаги

11

Необходимое время

30 минут

Введение

Use this guide to replace the bulb on the flash if it is burnt out.

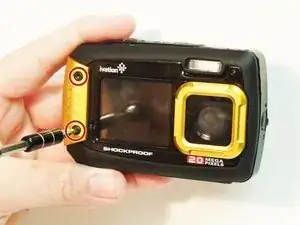

  1. 4YWLtYrRdJOc1RXS

    • With the H2.0 bit screwdriver, remove the two screws on the yellow waterproof cover

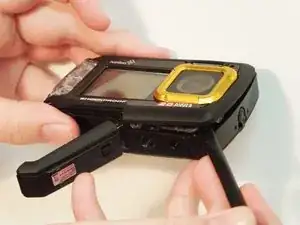

  2. apZoMtIbgv1gdHuQ

    • Apply a plastic opening tool to each of the corners and gently remove the casing

    • The front casing is held down by adhesive and may require additional work to remove

    • Apply just enough force to undo the inner latches to make sure not to damage the waterproof seal

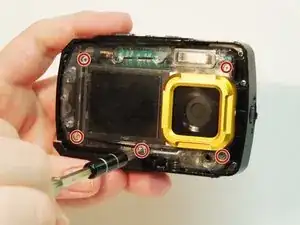

  3. Ew3CZ1KTaufZB4Wk

    • Remove the five silver screws from the inner casing using the PH00 screwdriver bit

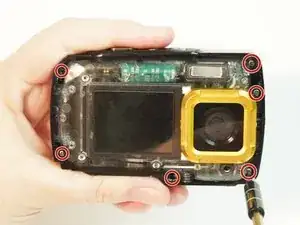

  4. UfXECVEZRItSBXir

    • Remove the six screws from the edge of the clear inner casing with the PH00 screwdriver bit

    • These screws are very small and easy to strip so apply consistent pressure when removing them

  5. 22qFFtSTYs3Gvotn

    • Pry off back outer casing using the black spudger or the blue prying tools

  6. VgwKpq2qI1W1u6Uv

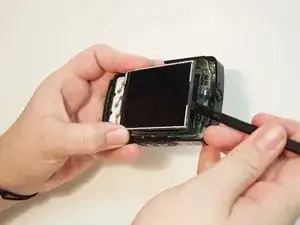

    • Carefully remove the screen from the silver casing using a prying tool or the black spudger

    • There is adhesive in the center of the screen, be sure not to bend it when applying pressure

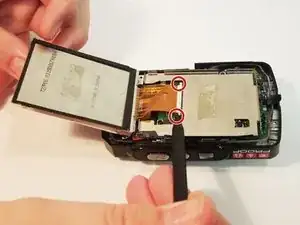

  7. DrA3nhRl2OJAB1T3

    • Gently push out the pins holding the orange tape down using the pointy end of the spudger

    • Screen and orange tape should slip out as a whole

  8. 22xQtqUHSFY4VEVf

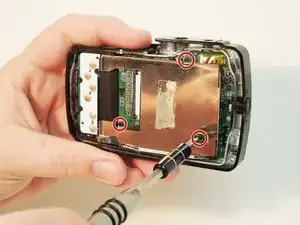

    • Remove three screws holding the silver screen casing to the motherboard using the PH00 bit screwdriver

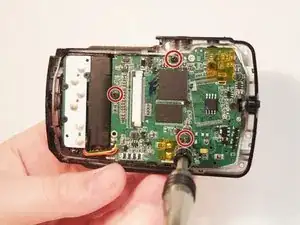

  9. tURY2veniEYvWCUh

    • Remove three screws holding the motherboard into the casing using the PH00 bit screwdriver bit

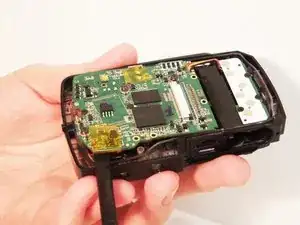

  10. AeklKUTi3XdDPFLK

    • Gently lift the corner of the motherboard out

    • Everything should come out as one component free of the casing

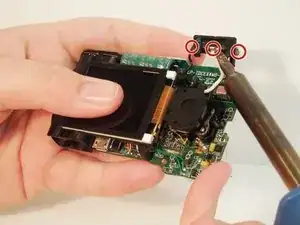

  11. iLNpxnVLlc2bldQk

    • Remove the soldering on the three wires holding the flash bulb

    • The wires are different colors: red, white, and black

Заключение

To reassemble your device, follow these instructions in reverse order.
