Ion Air Pro Power Button Replacement

Автор: Christopher Brandl
  • Комментарии: 0
Ion Air Pro Power Button Replacement

Сложность

Moderate

Шаги

5

Необходимое время

9 - 10 минут

Введение

Is your camera not turning on or turning off? Consider using this guide to replace the power button of your device.

Инструменты

  1. UfWBBdaZrbodMtsB

    • Remove the 6 screws that secure the lens cover bezel with a #00 Phillips screwdriver.

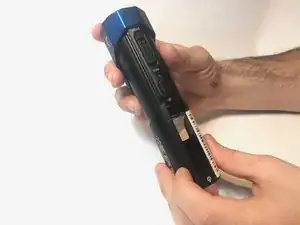

  2. yZQcoTXX3fjaJJXx

    • Slide off the black aluminum casing.

  3. LjESED1dmq4jWw1X

    • Unscrew the top screw that is by the power button using a #00 Phillips screwdriver.

    • A spring is being held down by the screw. be sure to hold it down.

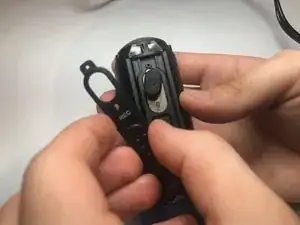

  4. NlG3ROfAkrFBhaJr

    • Lift off the plastic part holding the power button in place.

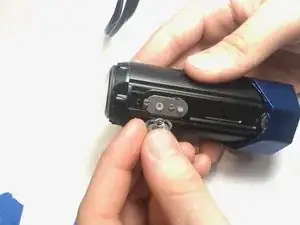

  5. MDbSSxRowsBANFUc

    • Remove the power button from the device.

Заключение

To reassemble your device, follow these instructions in reverse order.
