Internal Battery Circuit Connector

Сложность

Easy

Шаги

6

Необходимое время

10 минут

Введение

This guide will teach the reader to install a new Battery Circuit Connector into the battery case. This may need to be done if the batteries are not delivering electricity into the camera.

Инструменты

  1. pcUmacIwYDEKaeKJ
    pcUmacIwYDEKaeKJ
    vhLIWCAVkl1jaFww

    • Flip the camera over so the bottom of the camera is facing you.

    • Turn the mode dial to the OFF position.

  3. EqOxGSDrkZKj1VRR
    EqOxGSDrkZKj1VRR
    TNSOidZtgfwg3wTM

    • Slide the bottom cover in the direction of the arrow to open it.

  4. M3nae2bVbub2r5CO

    • Pull out the batteries.

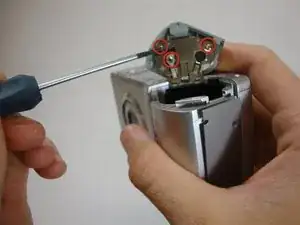

  5. hvRpZHhyaDCGVlTw

    • Remove the three screws from the circuit connector.

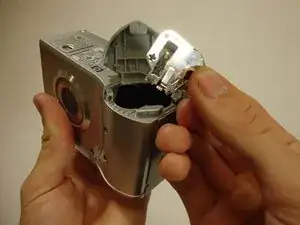

  6. mB2qKgHosF3fLbjK

    • Remove the connector from the battery holder door.

Заключение

To reassemble your device, follow these instructions in reverse order.
