Insignia Flex 11.6 Speakers Replacement

Сложность

Moderate

Шаги

6

Необходимое время

10 - 20 минут

Введение

This guide will provide you with step by step instructions on how to replace the speakers inside the device. This replacement should only be required for faulty speakers.

  1. GhJQoIbNCVS23m6C
    GhJQoIbNCVS23m6C
    HQtJv5BXnYfeGPK1
    WLYiYaRQMwUu6Akv

    • Before working on the device, make sure the device is off and not plugged into any power source for safety reasons. Failure to comply could result in injury.

    • Place the device on a firm surface with the device screen facing down.

  2. 6Mudg4HcDSTxhOBX
    6Mudg4HcDSTxhOBX
    vHPxINmpN3ZSRSPi

    • Remove 2, 6.1 mm Phillips J000 screws from the back of the device.

    • If any screws are stripped, refer to the ifixit guide for how to remove a stripped screw. How to Remove a Stripped Screw

    I just checked and there are no screw holes on my Insignia 11.6” tablet!

    Mugsys RapSheet -

  3. Im3eqAXndT4QjKnn
    Im3eqAXndT4QjKnn
    WaDHvRxZKVCuCKAB
    3s3RGwQQFQ64IN36

    • Using a plastic tool and the plastic card, gently pry off the back cover.

    How many locking tabs are there? I see one in the corner.

    Mugsys RapSheet -

  4. KJKOp6m1tiL3kBpM
    KJKOp6m1tiL3kBpM
    OQPu315rJWCiWaWB
    oJSaTIWqXuuVPVu4

    • Using tweezers, remove the electrical connector that connects to the battery to remove the power to the battery.

  5. vQjK2LQKEyGx5Las

    • Remove 2 electrical connectors that connects to the speaker using flat tweezers.

  6. sfonfRDk5Fu4bhMu
    sfonfRDk5Fu4bhMu
    Mh5F2Ijb5N5VNDJE

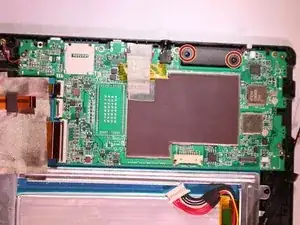

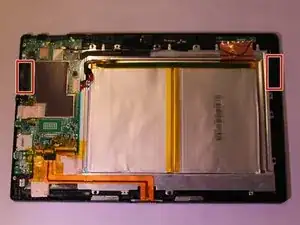

    • Remove 2 - 6 mm J000 Phillips screws from each of the speakers.

    • Speakers will pop out at this point.

Заключение

To reassemble your device, follow these instructions in reverse order.
