IBM ThinkPad T42 Optical Drive Replacement

Автор: Gerald Watanabe
  • Комментарии: 1
IBM ThinkPad T42 Optical Drive Replacement

Сложность

Very easy

Шаги

3

Необходимое время

1 - 2 минут

Введение

Removing the optical drive is extremely easy and will only a take a minute.

Инструменты

  1. S5pTr3g4sMpj1PQB

    • Remove the single screw holding the optical drive on the underside of the laptop

  2. TV2ZYEPdcNEKGwDE

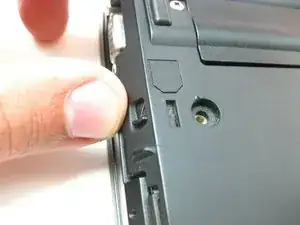

    • Push the small slider to unlock position, a tab will automatically pop out.

  3. PNv5AEEJsWfwcOn3

    • Pull the tab to dislodge the optical drive, then carefully pull the drive out.

Заключение

To reassemble your device, follow these instructions in reverse order.
