IBM ThinkPad A31 Display Replacement

Автор: Sean Tocci
  • Комментарии: 1
IBM ThinkPad A31 Display Replacement

Сложность

Moderate

Шаги

8

Необходимое время

10 минут

Введение

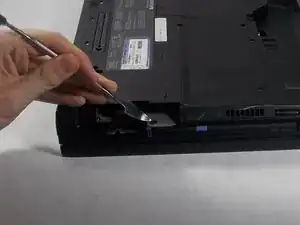

  1. 6YGJFAGUWFAbhC5Y
    6YGJFAGUWFAbhC5Y
    CFr5hdZheUuPUCxH
    noe5LULyA1nwK51J

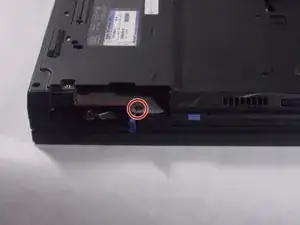

    • The sticker is to keep the warranty on the laptop so once removed the warranty is void

    • Peel the sticker and remove the 15mm screw

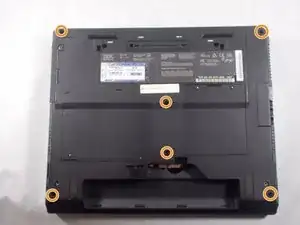

    • Remove all 6 of the 16mm screws

  2. bRbqTApQ13xXfJqD

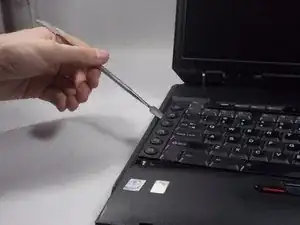

    bRbqTApQ13xXfJqD

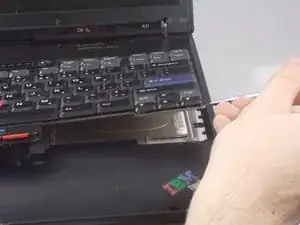

    uMQdQm4avRwYKFdy

    • use a prying tool and insert it on the cracks on the sides of the keyboard and lift gently until you here a click

    • repeat this step on all sides of the keyboard until the keyboard is completely detached from the laptop

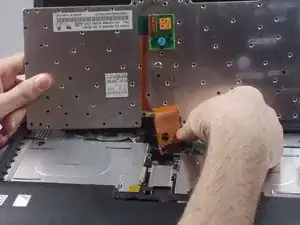

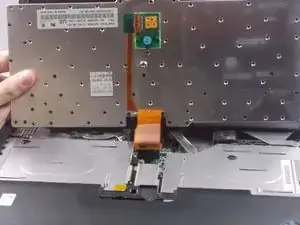

  3. mOPO5JS2eBlUc5Eo
    mOPO5JS2eBlUc5Eo
    iXCNvFwGUPyV6shP
    bPHYjFypfHSarP6f

    • Lift the keyboard and remove the keyboard ribbon cable from the laptop

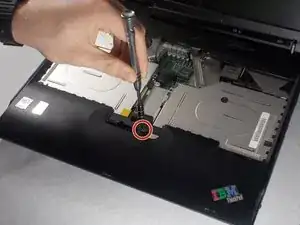

  4. ZQbKyOrtXWDRCkGb
    ZQbKyOrtXWDRCkGb

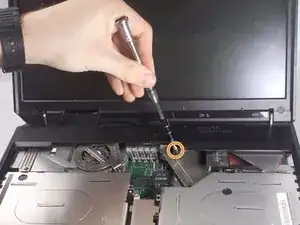

    qJCkyUZsKluCIGQu

    • Remove the one 21mm screw

    • Remove the 6mm screw

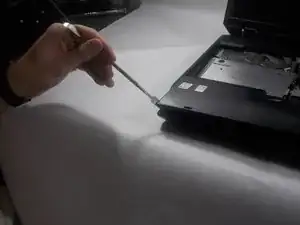

  5. MhhGLRBiQIHQF2ZF
    MhhGLRBiQIHQF2ZF

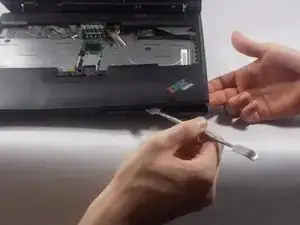

    FBZGmVyebIAeSwoD

    • Take the tool and run it under the black case.

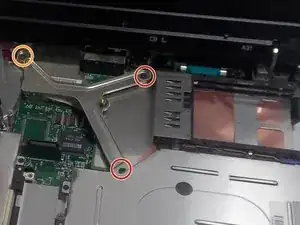

  6. adBjdaVFe21p2aEd
    adBjdaVFe21p2aEd

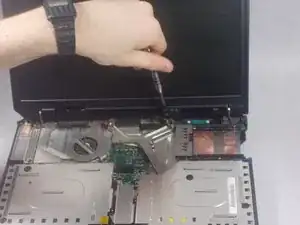

    upGuTTHB1dTRsy22

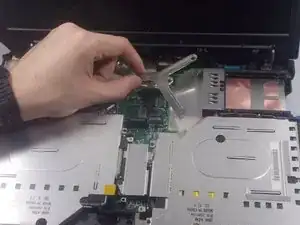

    YQXuKjLK2vMGQNMO

    • Unscrew the 2 (17mm) screws

    • Unscrew the 6mm screw

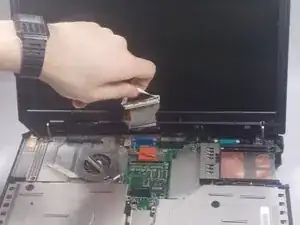

  7. YDBye1WNoibMMLqh

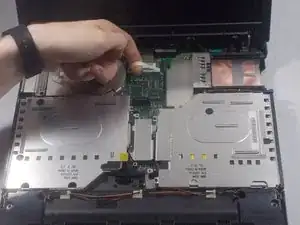

    YDBye1WNoibMMLqh
    MWxBP1esYP6MV6Up

    • Gently disconnect the white display ribbon cable

    • Pulling on the ribbon cable too hard could result in worse or faulty connection.

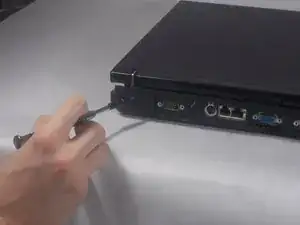

  8. ZuWMlUaLstryPBkY

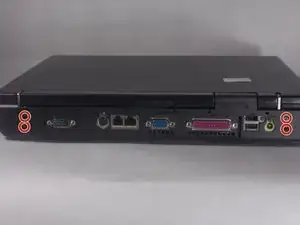

    ZuWMlUaLstryPBkY
    WFBBW4YuWuItKJSh
    iISwtgkfSG6GVohj

    • Unscrew 4 (6mm) screws

    • Lift screen straight up

    • If not lifted straight up the screen could get damaged

Заключение

To reassemble your device, follow these instructions in reverse order.
