Huawei Pronto LTE Rear Camera Replacement

Автор: Sonara
  • Комментарии: 0
Huawei Pronto LTE Rear Camera Replacement

Сложность

Moderate

Шаги

5

Необходимое время

25 минут

Введение

This guide will clearly show you how to replace the rear camera in your Huawei Pronto LTE smartphone, without damaging other parts of the phone.Before you start please have the correct tools listed underneath as these tools will ensure a successful camera replacement.

  1. eJI32dTUZWFDg42U
    eJI32dTUZWFDg42U
    YofSmKqQBQhCHDQK
    5THysALNxbdL3KdD

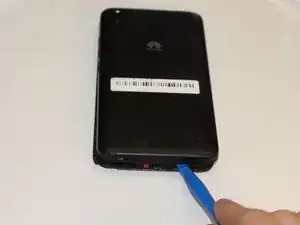

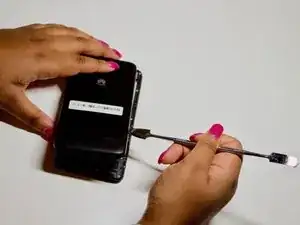

    • Use an Opening Tool and begin to lever up the back cover of your Huawei Pronto LTE

    • Make sure to do this all around the smartphone.

  2. csQPIVXlEe5URJAn

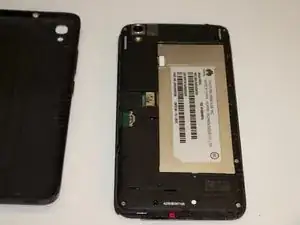

    • Remove the back cover.

    • Please keep all the removed smartphone pieces in a safe place. These pieces will be needed later.

  3. BZsVUVas6FnOFLUD
    BZsVUVas6FnOFLUD
    UDrQMjNlRie1V2I1

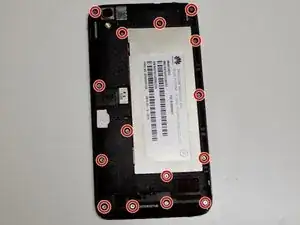

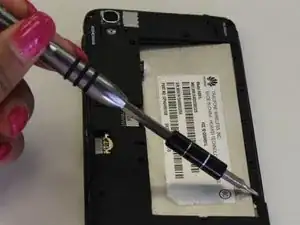

    • Unscrew the fifteen 0.5mm screws with a Phillips #000 screwdriver.

  4. XupLxordloj14ZrU
    XupLxordloj14ZrU
    Q2JDT4qGuLeZmVeY
    lwSbBTimhfU1Y6TS

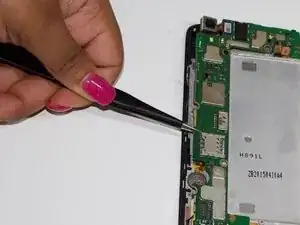

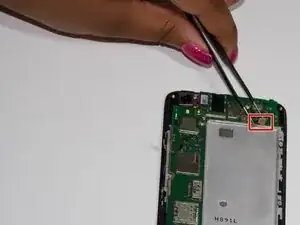

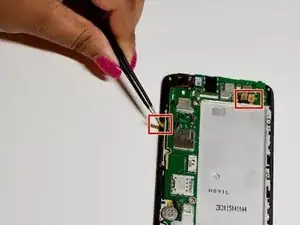

    • Lift up the connectors with tweezers to disconnect them from the motherboard.

    • Then use the tweezer again to take off the motherboard.

  5. aTNyZR3wqRR5DHWx
    aTNyZR3wqRR5DHWx
    gttYmZiJxSRqo5UB

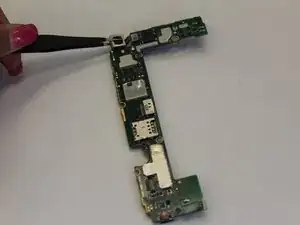

    • Release the connector.

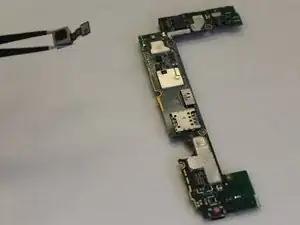

    • Loosen the camera from the motherboard and take it out with the tweezers.

    • Do not touch the camera with your hands, only use tweezers.

Заключение

To reassemble your device, follow these instructions in reverse order.
