Введение
Using a anti-static mat and wristband to prevent ESD
Инструменты
-
-

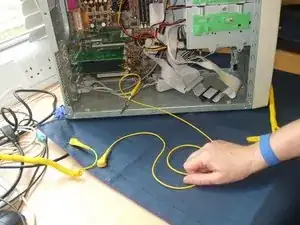

Grounding the mat.
-

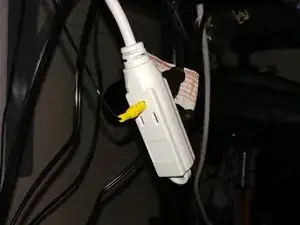

The connection will snap to one of the buttons on the corner of the mat and go to a grounding source such as a socket.
-
-
-

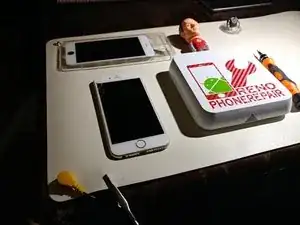

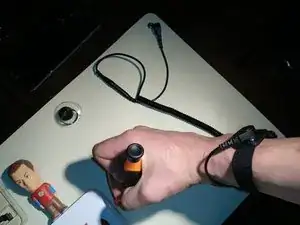

With the device unplugged and on the mat. The alligator clip connects to the metal chassis of the electronic device on one end and the other to your wrist or to the mat if unable to ground the mat to a socket
-
Заключение

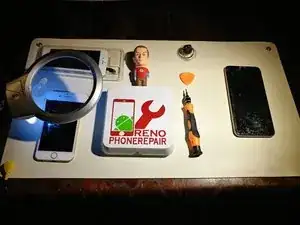

You are now safe from electrostatic discharge (ESD)
