How to repair the foot pedal (spring)

Автор: Barrie van der Goes
  • Комментарии: 1
How to repair the foot pedal (spring)

Сложность

Easy

Шаги

7

Необходимое время

10 - 15 минут

Введение

This guide will teach you how to remove the casing, remove the pin of the pedal and replace the spring for the pedal. You will need a medium sized Phillips screwdriver and an all-purpose wrench (although any small flat wrench will work).

  1. RL1wYqaTxQa55S31
    RL1wYqaTxQa55S31

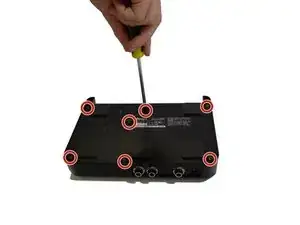

    fbYJLdPdTTJOoAKN

    • Turn over the EC20.

    • Unscrew all 7 screws on the back.

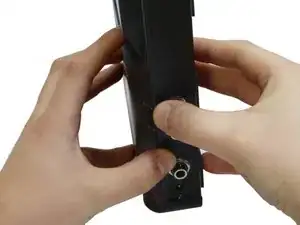

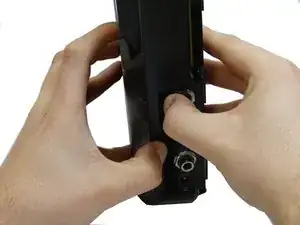

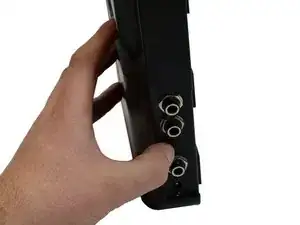

  2. FsauZ4HBSnLYUUOG
    FsauZ4HBSnLYUUOG
    wNkXvpVRvq1wEXhF
    GAgdLVoQWBRCsNuF

    • Put the EC20 on its side and put your thumb on the edge.

    • Place your other thumb on the jack input.

    • Pull them apart and slightly open the case.

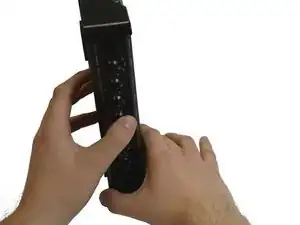

  3. uA4CAIbLtw15ZjrY

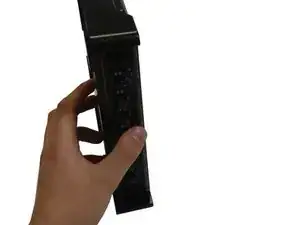

    uA4CAIbLtw15ZjrY
    vWt3XMONRQmuQtth

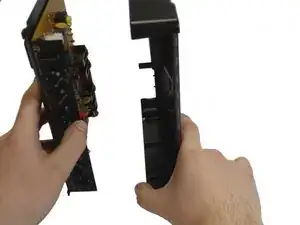

    UZOoHkaFlnLHhMwp

    • Turn the EC20 around and place your thumb on one of the knobs.

    • Place your other thumb on the bottom edge where part of the casing sticks out.

    • Pull them apart, you should now be able to open the casing completely.

  4. J3F2RnrVrIATlwbt
    J3F2RnrVrIATlwbt

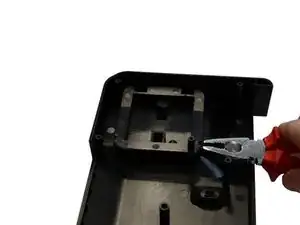

    CTGbQ2kyPLhwivoW

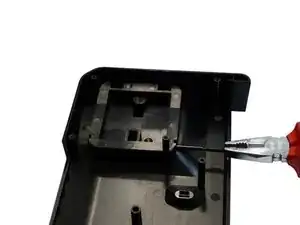

    IkTTIU2xB6olIOEW

    • Push the rod out by using the screwdriver as a lever.

    • Pull out the rod with the wrench on the other side.

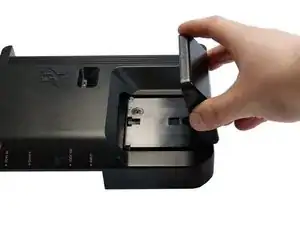

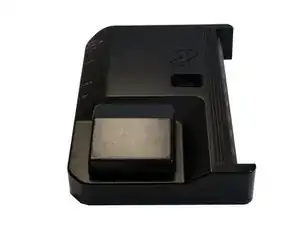

  5. 5gNZfkeT5fRx3emN
    5gNZfkeT5fRx3emN
    x2y1YrEFLvU2MWIu

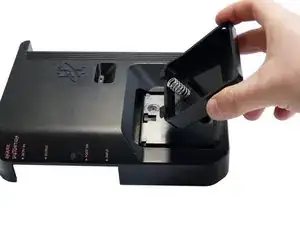

    GLoW4BXwJWKgqZv6

    • Turn around the upper casing.

    • Grab the pedal and pull it out of the casing.

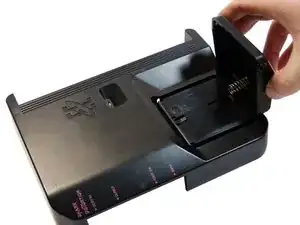

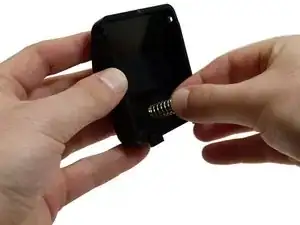

  6. NpQBMKOSOoQqHCYB
    NpQBMKOSOoQqHCYB
    lUvvQq51VSwwIfYm

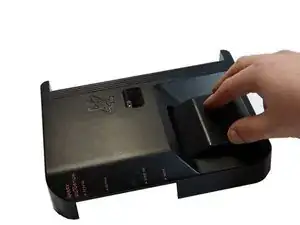

    DIRoZmRivZwwCV1d

    • Push the spring back in position on the ring.

    • Put the pedal back in the casing.

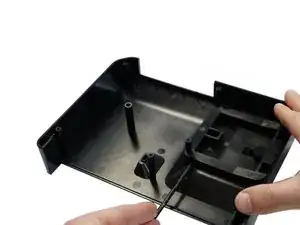

  7. crLHeUnhhcsqWZ3i

    • Push the rod back in position.

Заключение

Close the casing again and fasten the casing with the screws. You have now successfully replaced the spring!
