How to open an Aneng AN8008

Автор: Sebastian
  • Комментарии: 0
How to open an Aneng AN8008

Сложность

Easy

Шаги

6

Необходимое время

1 минута

Введение

This guide provides detailed instructions to disassemble your multimeter, allowing you to access internal components for maintenance or repair purposes.

  1. NHELJOPmPsNx2r2X
    NHELJOPmPsNx2r2X
    uVXFDVaTRgnZXOt5

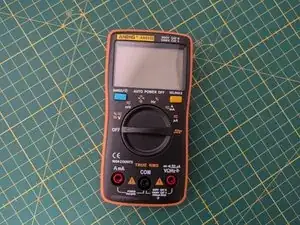

    • Place the multimeter on its front.

    • Flip up the kickstand.

  2. Q5xTdrbnO1wZNsVH

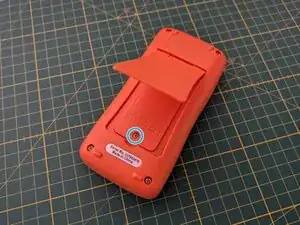

    • Use a PH1 screwdriver to unscrew the single screw holding the battery cover and kickstand.

  3. QQ4IfSl6dPZmHkGi
    QQ4IfSl6dPZmHkGi
    EGuBjQWVRwYMQWcD

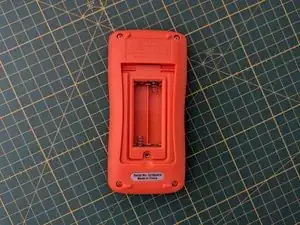

    • Remove the battery cover and kickstand.

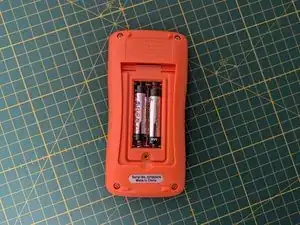

    • Remove the batteries, if present.

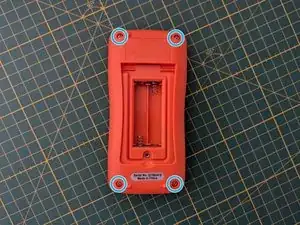

  4. lYFHblaCPlH2oaQu

  5. KVXGFB4utAJoauD2

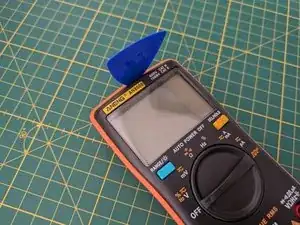

    • Insert a pick into the top gap between the backshell and front cover.

    • Partly leverage the front cover away from the backshell.

  6. 65XTipfwKwKJi5kW
    65XTipfwKwKJi5kW
    mej5MC3DuVxuLTZo

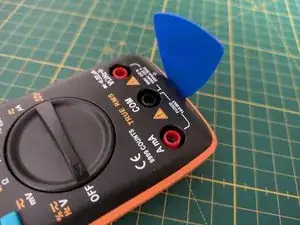

    • Insert a pick into the bottom gap between the backshell and front cover.

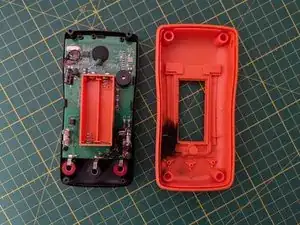

    • Fully leverage the front cover out of the backshell.

Заключение

To reassemble your device, follow these instructions in reverse order.
