If your Shark Rocket Deluxe Pro Vacuum (model number HV322) isn’t rolling or sucking, chances are there’s a clog inside the vacuum. Not all clogs are easy to see, so this guide will show how to troubleshoot all the major areas clogs can occur; inside the filters, the rollers, the dustbin, and the tube.

  1. QZBbpsDjBQlLauM5
    QZBbpsDjBQlLauM5
    nMfmxUxpYgEmYarT

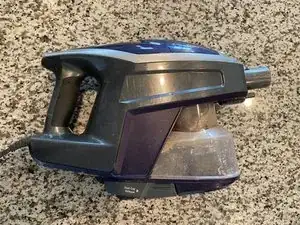

    • Press the wand release button to remove the vacuum body from the roller brush and wand.

  2. HUw5JhvDiMbxngDO
    HUw5JhvDiMbxngDO
    2XuVmjySOuR6UXjb

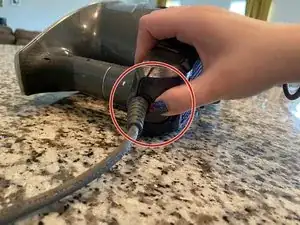

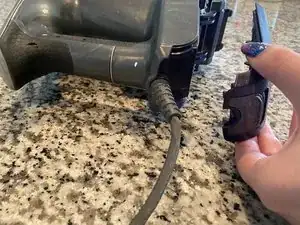

    • Press the button at the bottom of the power cord on the dust bin.

    • Pull off the attached piece.

    • Remove the small filter from the piece.

  3. nGJIYRicLTSLI3TG
    nGJIYRicLTSLI3TG
    KfysEiaLLfUsP6p3

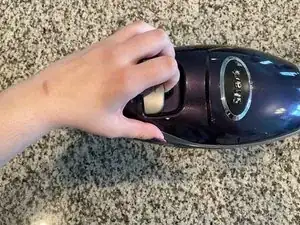

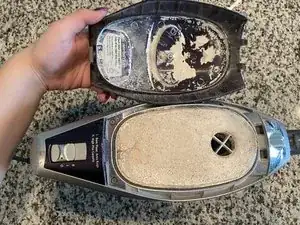

    • Pull the lever on top of the dust bin to expose the main filters.

  4. 5rLFsxcvpUaECBmU
    5rLFsxcvpUaECBmU
    nRvWBASROLAfCpaJ
    DaFNBx4vDTVqwBhU

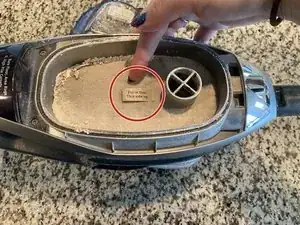

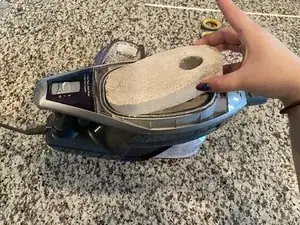

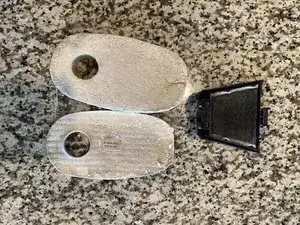

    • Carefully squeeze and remove the top filter.

    • Underneath that filter is a second filter. Pull the tab to remove it.

  5. UNYrR1wQqYTCtdoE
    UNYrR1wQqYTCtdoE
    kMt2RoP51Gt4hUpZ
    3VpnXkA2LXvPX4B5

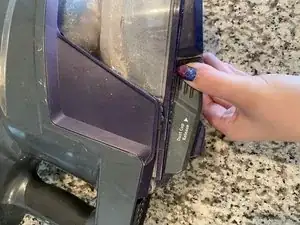

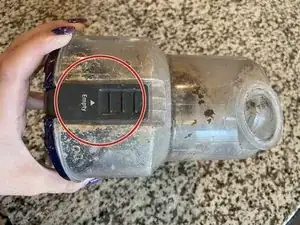

    • Squeeze the release on the bottom of the dustbin.

    • Remove the dust bin from the base.

    • Pop the lid open using the slider.

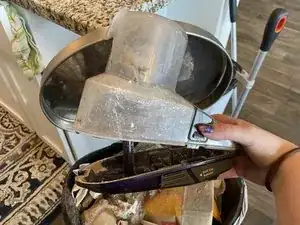

    • Empty the dust bin into the trash.

  6. RIv2xDtfWWWmqWvh
    RIv2xDtfWWWmqWvh
    vr3o6G3bIUKgoLXS
    QUGDveJHkcF1Dyuv

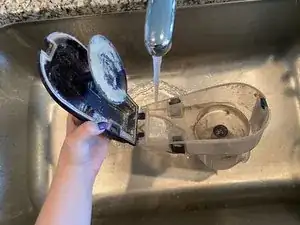

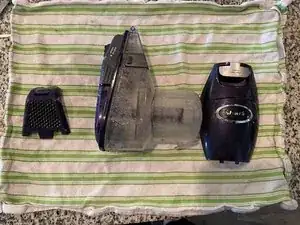

    • Rinse and wipe the plastic pieces removed earlier.

    • Do not use soap.

    • Set the pieces aside to air-dry.

  7. bTJwueG3QVO43QkB
    bTJwueG3QVO43QkB
    smKkH1HbVdiqJGQh
    1VuNfPgxHIpRtnvu

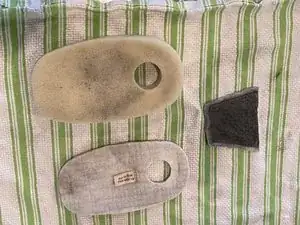

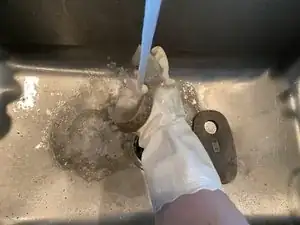

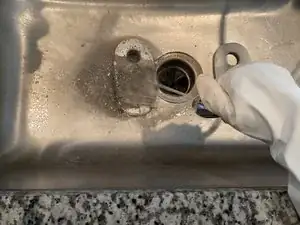

    • Place the filters in your sink and rinse out the dirt.

    • Squeeze out any excess water and allow them to air-dry overnight before reinstalling.

    • DO NOT USE SOAP.

  8. EaJHfWmJf4I3qV5A
    EaJHfWmJf4I3qV5A
    FGmw1ml4JrCDmkdC
    ofNkqUggHaTs1BLT

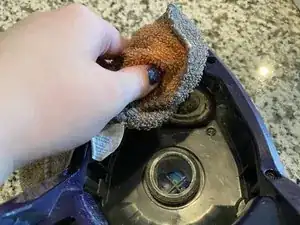

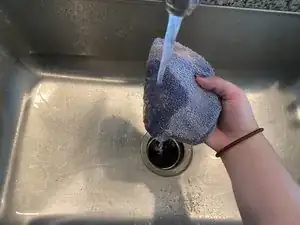

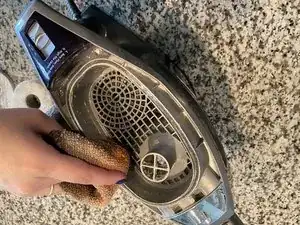

    • With a wet rag wipe out any dirt buildup on the vacuum casing.

  9. wShbb6DumKyJuAXS
    wShbb6DumKyJuAXS
    esqrklSYBwk5FYST
    FQcanhKTgK6QLLXq

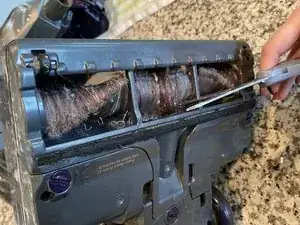

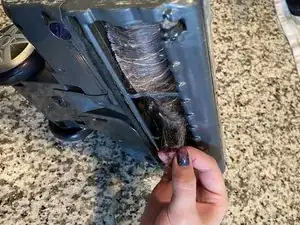

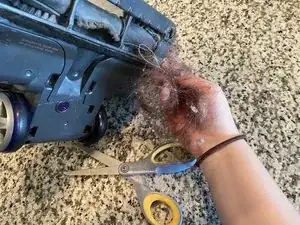

    • Turn the base of the vacuum on its side.

    • With your scissors, cut any wrapped hairs or strings that may be stuck on the rollers.

  10. JIAlyAKc4llaMYRE
    JIAlyAKc4llaMYRE
    5yR2XZZ2pcGVZSrs

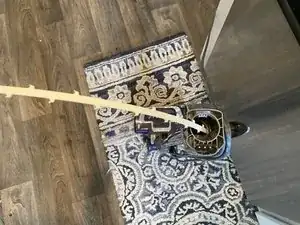

    • Lastly, insert your drain snake into the tube of the vacuum to dislodge any large stuck items.

Заключение

To reassemble your device, follow these instructions in reverse order.
