How to Fix a Loose Turret on a Sony Cyber-shot DSC-F828

Автор: Michael Ventura
  • Комментарии: 2
How to Fix a Loose Turret on a Sony Cyber-shot DSC-F828

Сложность

Moderate

Шаги

7

Необходимое время

10 минут

Введение

Have a loose turret on your Sony Cyber-shot DSC-F828 camera? This guide will show you how to successfully repair that turret so your photo-taking skills can return to optimum performance. A shock-free mat or a grounding bracelet is also recommended when fixing this particular device.

Be sure to leave the lens cap on to avoid scratching the lens.

Инструменты

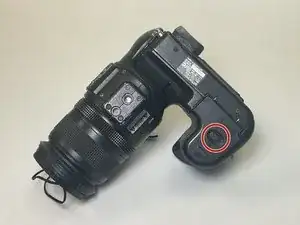

  1. ArhFvWNjA5YB6ZQT
    ArhFvWNjA5YB6ZQT

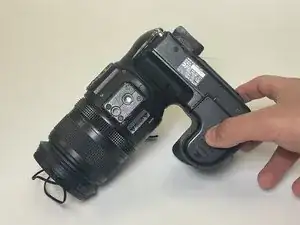

    aJmwAHWR1Kb1fySL

    • Slide the button back to open the battery cover.

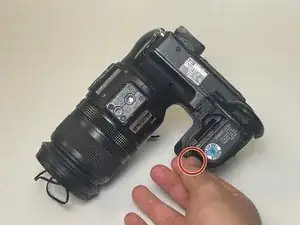

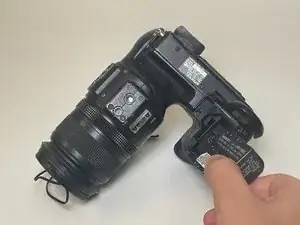

  2. sw5ihWvWTvieCjpm
    sw5ihWvWTvieCjpm
    WqrpwLJK6vI6ZgRv

    • Pull back on the tab to release the battery.

    • Pull the battery out, then close the lid.

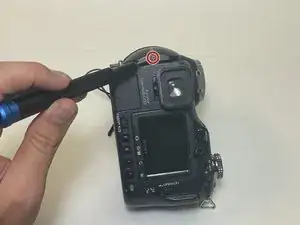

  3. wgXZp4JtuWIfMHIE

    • Remove the screw on the back of the turret with a JIS #00 screwdriver.

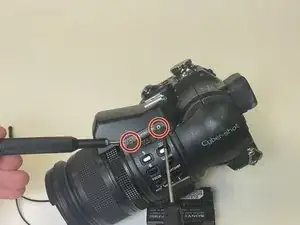

  4. HqjZjURwY6gxmOZn
    HqjZjURwY6gxmOZn

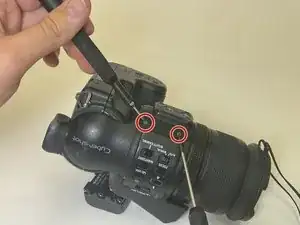

    JYVX2JgTWkFqNbYM

    • Remove two screws from each side of the camera (four in total) using a JIS #00 screwdriver.

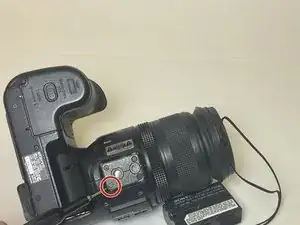

  5. WbxXDgbMmPJORQdF

    • Remove the screw on the bottom of the turret using a JIS #00 screwdriver.

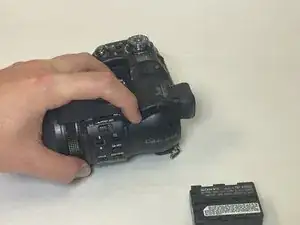

  6. ObjJDN1WJmr2e2rc

    • Carefully pull the face plate off and lay it down.

    • There is a cable attached to the plate that should not be removed.

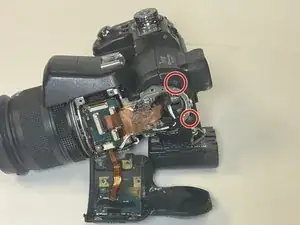

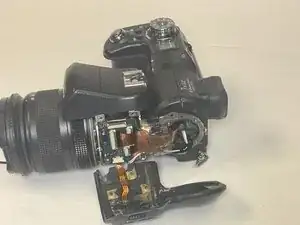

  7. He1TRmldPWlSCVK4
    He1TRmldPWlSCVK4
    QPofNgigAtxumRAG

    • Tighten the two screws using a JIS #00 screwdriver.

    Here’s a way much better and thorough one:

    http://howtheheckdididothat.blogspot.com...

    Catalin Ap -

Заключение

To reassemble your device, follow these instructions in reverse order.

Автор

Michael Ventura

Участник c: 08/09/21

219 Репутация

Один комментарий

Thanks, I just used this to tighten the pivot on an F828 I got on eBay. Super easy.
