Hott T725-8G Camera Replacement

Автор: Emma Carroll
  • Комментарии: 0
Hott T725-8G Camera Replacement

Сложность

Easy

Шаги

4

Необходимое время

15 минут

Введение

Follow this guide to replace the camera in the Hott T725-8G.

  1. oNeJMkuDjIdBLCSM

    • Carefully remove the black electrical tape connecting the motherboard to the ribbon wire.

  2. K6koAPmLZodCGCLA

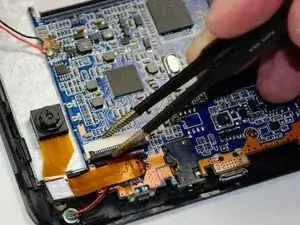

    • Use a pair of Precision Tweezers to squeeze the clip of the ribbon wire to release it.

  3. 5CikFag4BaPeomCR

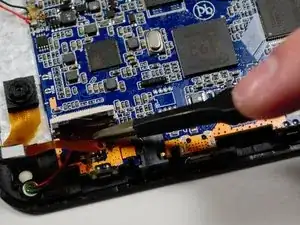

    • Using a pair of the Precision Tweezers, remove the ribbon wire from the clip.

  4. ietQFMTFVDWfBdGm

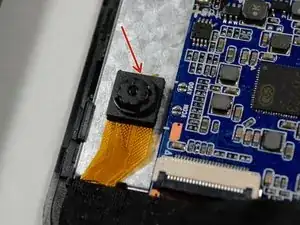

    • Gently dislodge the camera using the Metal Spudger. The camera is now ready to be replaced.

Заключение

To reassemble your device, follow these instructions in reverse order.
