Введение
This guide shows how to remove or replace the rotary tines on a Honda FRC800K1A Rear Tine Tiller.
You may need to support the tiller during this process. Use jack stands, large pieces of wood, or other strong supports. Rock the tiller back and forth on its supports before beginning to ensure that it won’t fall or tip over during repairs.
Инструменты
Запчасти
-
-

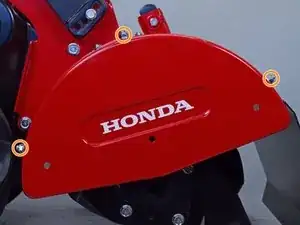

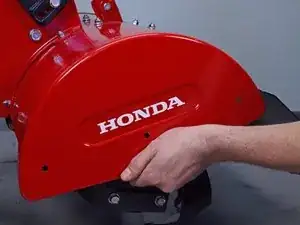

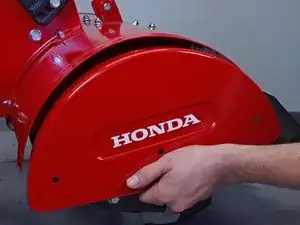

Use a 12 mm socket and wrench to remove the six sets of side guard bolts and nuts, three on each side.
-
Заключение
To reassemble your device, follow these instructions in reverse order.
