Homelite UT44172 Plastic Casing Replacement

Автор: Adam soto
  • Комментарии: 0
Homelite UT44172 Plastic Casing Replacement

Сложность

Easy

Шаги

2

Необходимое время

5 - 10 минут

Введение

If the case of the shear is cracked and you are concerned about debris getting into the device this guide is what you are looking for.

  1. EUB6T5cOX5uCrjnP

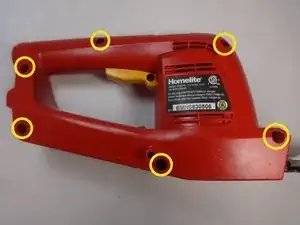

    • Remove the six 15 mm screws from the shear using a Phillips #2 screwdriver.

  2. jVVuYCPorHGlJWXJ
    jVVuYCPorHGlJWXJ
    Jhk1wAVjrUPsIDKX

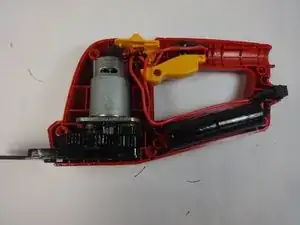

    • Pull the faceplate away from the body of the device and replace it with the new faceplate.

    • Potential for device damage: Be sure to take caution of loose wires during the replacement process.

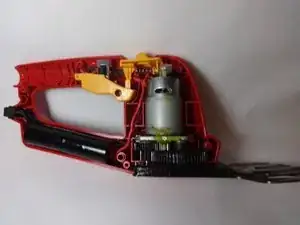

    • If the plate with the screw sockets was replaced, the wires will need to be put back into the the depressions on the new plate for the device to be closed up properly. See photo with the blades on the right for proper wire placement.

Заключение

To reassemble your device, follow these instructions in reverse order.
