Homelite UT44172 Operating Switch Replacement

Автор: Adam soto
  • Комментарии: 0
Homelite UT44172 Operating Switch Replacement

Сложность

Easy

Шаги

4

Необходимое время

2 - 7 минут

Введение

If you are having problems turning on the shear or the operating switch seems too loose, this guide might be useful for replacing the part.

Инструменты

Запчасти

  1. hD2nKKlLWlMMW1SO

    • Use a Philips-head screwdriver to remove the six, 15 mm screws from the casing.

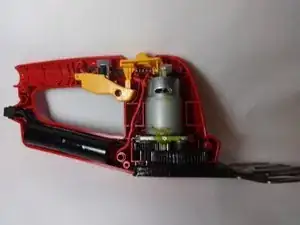

  2. 6WNuWnPCarHGkqsA

    • Remove the faceplate from the main body of the device, lift it and expose the inner mechanisms.

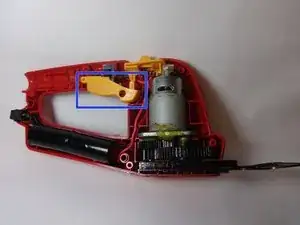

  3. TWTf1dpA6P2IYGPM
    TWTf1dpA6P2IYGPM
    RGNKNuxaYviONg1f

    • Locate and remove the operating switch from the device.

  4. kdRToninsurIDhMs

    • Replace the spring if it is deformed or broken.

    • Be careful that the wires do not get caught in the spring when replacing it.

Заключение

To reassemble your device, follow these instructions in reverse order.
