If you are having trouble with your Homelite UT44172 Cordless Grass Shear cutting grass due to dull, loose, or broken blades, follow this guide to replace them.

Инструменты

  1. VvT26LE3ipCg1LYO

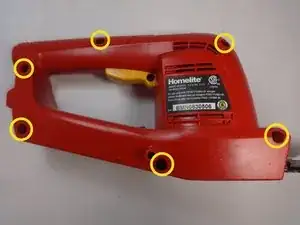

    • Remove the six 15.0 mm screws from the body of the device with a Phillips #2 screwdriver.

  2. vmcFVOCwBuPiJxYP

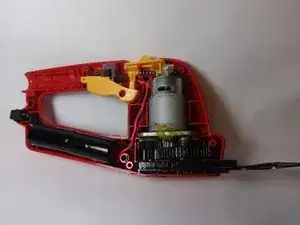

    • Remove the face plate by lifting it away from the other half of the device. This will expose the interior.

  3. 1Uw6JUMqWGSEIPRP
    1Uw6JUMqWGSEIPRP
    SCqAAwTsH2t4VCMs

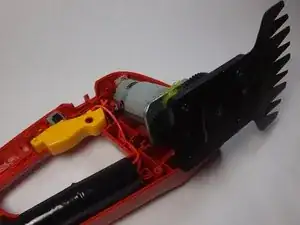

    • Use the Phillips #2 screwdriver to remove the four 10.0 mm screws on the bottom of the blades.

  4. GnYDDeXJuOnuOsM3
    GnYDDeXJuOnuOsM3
    KK6ZtuDpEP3nrOTC
    BBAKQWtaIrxWdoSZ

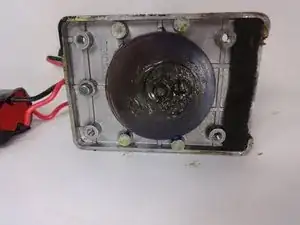

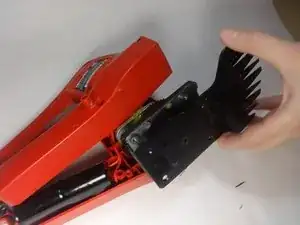

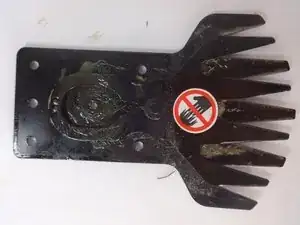

    • Remove the old blades by pulling them away from the gears and motor.

    • Be careful handling the blades. They are sharp.

Заключение

To reassemble your device, follow these instructions in reverse order.
