Hitachi CP-X2511 Projector Bulb Replacement

Сложность

Easy

Шаги

4

Необходимое время

5 минут

Введение

A projector's bulb may need to be replaced if the image starts to deteriorate or darken after an extended amount of times.

  1. KvWUyusDLHycQ6Hp

    • Locate Bulb Slot at the back corner of the projector with one screw on the side of the cover.

  2. 4puQUI1dSxQKZkQk

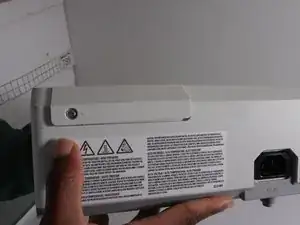

    • Using a Philips head screwdriver unscrew the cover that is over the Bulb itself then remove the cover using your hand.

  3. VEMOKLXltC4tVs6V

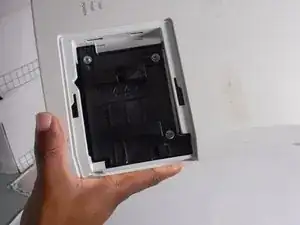

    • After removing the cover loosen the screws in the corners of the Projector Bulb.

  4. gTVPSwf6LtjPvBuc
    gTVPSwf6LtjPvBuc
    Yvky5sgcCxRDxfPp

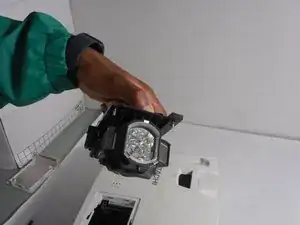

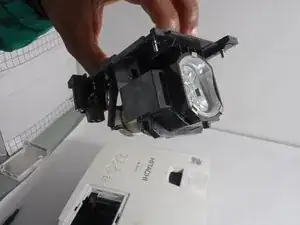

    • Lift out worn bulb using black handle at the top and replace with new bulb.

Заключение

To reassemble your device, follow these instructions in reverse order.
