Введение
If the LED lights do not function after troubleshooting, you might need to change the LED Board. For this replacement you need a Phillips #2 screw driver and a metal spudger.
Инструменты
-
-

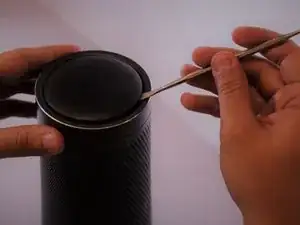

Use a metal spudger to remove the top cover.
-

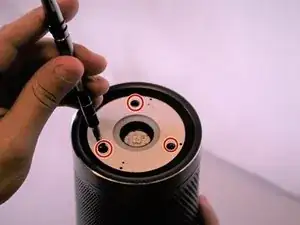

Use a Phillips #2 screwdriver to remove three 17 mm screws.
-
-
-

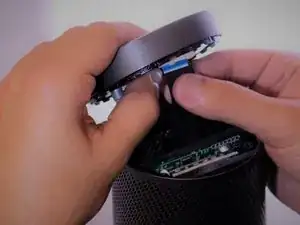

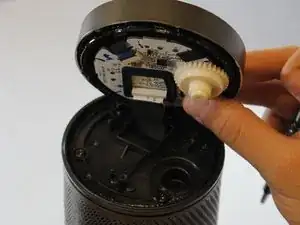

Grip larger cable connected to LED board and pull volume wheel until both are disconnected from the cable.
-

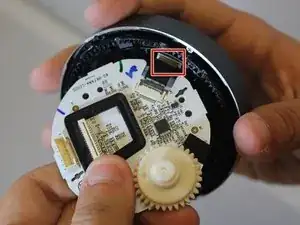

Pull lightly on the LED board to disconnect the smaller LED board cable from volume wheel.
-
Заключение
To reassemble your device, follow these instructions in reverse order.
