Hamilton Beach 51101BA Motor Replacement

Автор: Andrew Huff
  • Комментарии: 3
Hamilton Beach 51101BA Motor Replacement

Сложность

Difficult

Шаги

9

Необходимое время

10 минут

Введение

After using this guide you will have learned how to replace the motor to your blender. You will need to use basic tools and soldering to complete this guide.

  1. WODltBbsGFsX12uI
    WODltBbsGFsX12uI
    qERNsDJTV2dQJ1wx
    aINGPhAkLD43GYGk

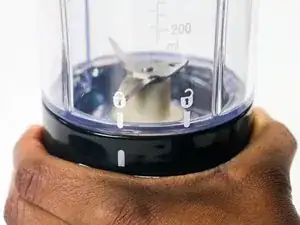

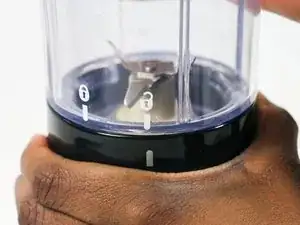

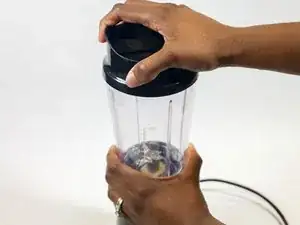

    • Remove the container from the blender.

    • Hold the blender and the container, then twist the container in a clockwise motion.

    • Make sure to follow the lock and unlock markings on the container.

  2. ZTQ3DqfaXHJVoWu1

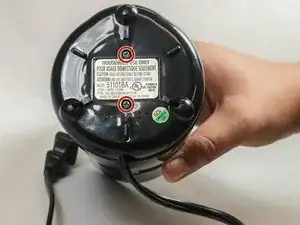

    • Turn the blender so the bottom is facing you.

    • Using a Phillips #2 screwdriver, remove the two 5 mm Phillips screws from the base.

  3. WUElt4OBIuvxObUW

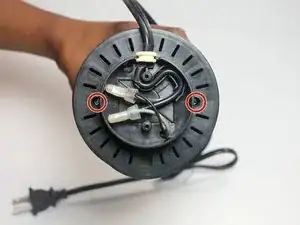

    • Using a Phillips #2 screwdriver, remove the two 5 mm Phillips screws from the motor platform.

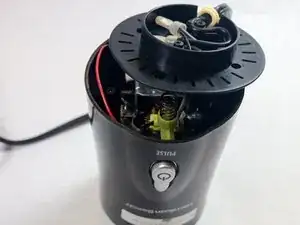

  4. 5MLD3w5dcboHuBAe

    • Unhinge the plastic motor platform from the blender.

    • You may need a plastic spudger to unhinge the motor platform from the blender.

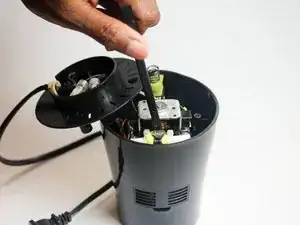

  5. RDHNZEYLqfAyQH2i
    RDHNZEYLqfAyQH2i
    E2EmVtFIyWbbiZqN

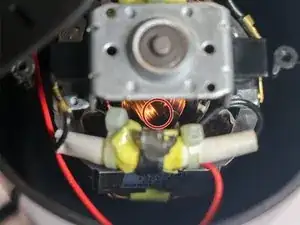

    • Using a spudger, carefully insert the tip into the coil of wire around motor.

    • This is used to hold the rotating piece of the motor still.

    It is not clear where to put the spudder

    Quacky Ducky -

  6. CNgl1FrWcrCIBbWg

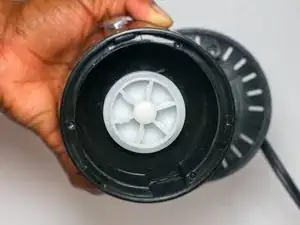

    • Remove the white rotor piece by rotating it counter-clockwise.

    • While rotating, make sure the rotating piece of the motor remains still.

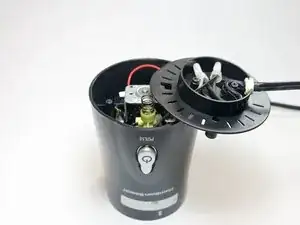

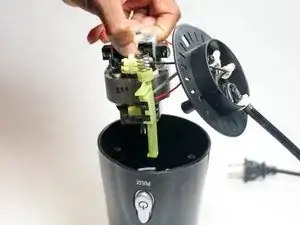

  7. RpTXevRvZxCnHpg1
    RpTXevRvZxCnHpg1
    PdBleqwbAdDFXFXI

    • Move the motor platform to the side.

    • Lift up the motor and remove it from the blender.

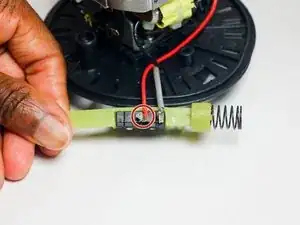

  8. rc5mOmEd3aCOcCaC

    • Some soldering experience required!

    • Desolder the red wire from the green plastic piece.

  9. 6PS1nMFZBVoxn4LQ

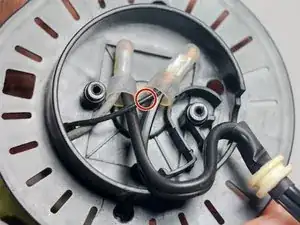

    • Cut the thin black wire from the wire cap.

Заключение

To reassemble your device, follow these instructions in reverse order.

Автор

Andrew Huff

Участник c: 04/09/15

616 Репутация

2 комментариев

This article appears to be unfinished. You cut 2 wires at the end... then what? Reconnecting them doesn't make any sense.

Geo Jack Jack -

Que tipo de motor tengo que comprar?

hugoalex521 -
