HTC Maple 100 External Speaker Replacement

Сложность

Easy

Шаги

7

Необходимое время

10 минут

Введение

This guide will teach you how to replace the external speaker on your phone. The external speaker is the speaker that is used for louder noises produced from your phone such as music. This is different from the ear speaker that you hear during phone calls.

  1. PKkyHk6a35BflpJu

    • First remove the back cover of your phone to expose the battery.

  2. TCKDYrGcG3UBUgTo

    • Turn the phone over.

    • Push forward on the battery with your thumb.

  3. pP4DmaEn62Ivptpt
    pP4DmaEn62Ivptpt
    uA133yAWUvYoACQo

    • Take the battery out by lifting it upwards.

    • When reassembling, make sure that the battery contacts match up.

  4. lJZHrQRlFLXqKWcq
    lJZHrQRlFLXqKWcq
    l5phqTa6LZXHNGle

    • Remove the four 4.9mm T6 Torx screws that secure the back panel to the rest of the phone.

  5. ndMdNR1SBwusvWDy

    • Remove the two 4.3mm Phillips #00 screws that secure the back panel to the rest of the phone.

  6. BLXJo3ZImBNT1yiU
    BLXJo3ZImBNT1yiU
    qe6eGBCayevDQPcW
    TVELAuQprIUPwGGA

    • Insert the plastic opening tool along the seams at different points to it pry the clips off.

    • This may require a bit of force. The USB port cover may fall off in this step.

  7. RGWWNReRkfDgpBKl
    RGWWNReRkfDgpBKl
    TTPIuNypKhcFd2NZ

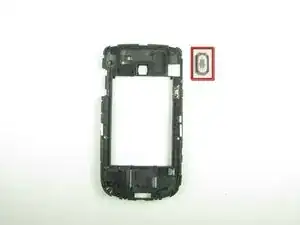

    • Using the plastic opening tool, pry the external speaker out of the back panel.

Заключение

To reassemble your device, follow these instructions in reverse order.
