Введение

The fans are hot-pluggable and can be removed without powering down the server.

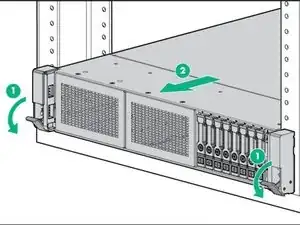

  1. YhTiehxXmsELKPtD
    • Pull down on the quick release levers on each side of the server.

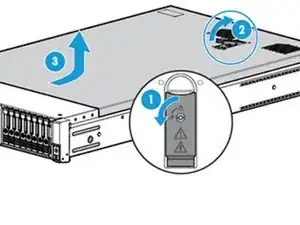

  2. iTyZnspXCKLVGApW
    • Unlock or open the latch, slide the access panel to the rear of the server, and then remove the access panel.

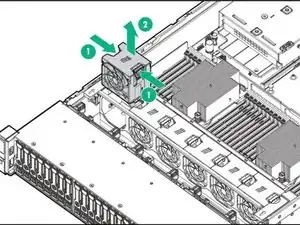

  3. cUQceQSGYuyK3yQE
    • Release the fan by grabbing the top, pressing the release tab, and lifting it out of the server.

Заключение

To reassemble your device, follow these instructions in reverse order.
