HP Stream 8 Speakers Replacement

Автор: Nick Miller
  • Комментарии: 1
HP Stream 8 Speakers Replacement

Сложность

Moderate

Шаги

6

Необходимое время

Нет оценки

Введение

This guide will provide a step-by-step walk through on replacing the speakers in a HP Stream 8.

  1. 4L5e5wRRLmNFCcUX

    • Use your nail or a spudger to pry the back cover off of the device.

    Hey bro are you have a battery for stream 8

    Kashif joiya -

  2. GcgUwKcNSLW5kPw4

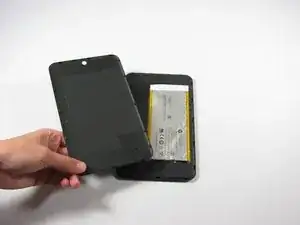

    • Slide your finger around the rest of the back cover, lifting it completely off of the device.

  3. e3CA6xfNbSDX2hCW

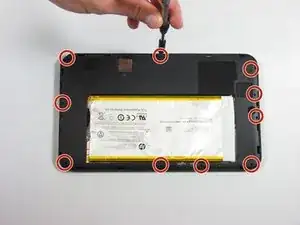

    • Remove ten Phillips #00 screws from the inside cover.

  4. GKFySoTtrHCQ2XTN

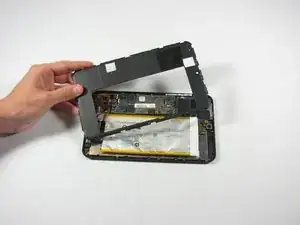

    • Pry up the inside cover the same way as in the first step.

  5. hacN3ZxWUiIFFNx3
    hacN3ZxWUiIFFNx3
    YBNOLJUkPRoOPnJq

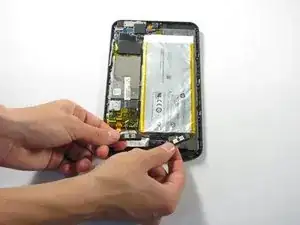

    • Locate the two speakers at the bottom of the device.

    • Remove the two speakers by prying them out using a pair of tweezers.

    • Detach the red and black power wiring from the device and pull the speakers entirely out of the HP Stream 8.

    • Remember where the red and black wiring is connected to the device.

    • The power wires are soldered to the device and will be difficult to detach.

  6. yDAWisCBMH6Oy426

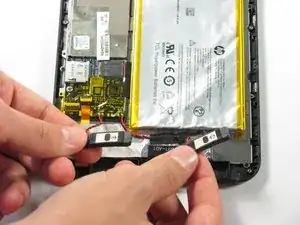

    • Grab the two replacement speakers and the soldering iron.

    • Locate where the red and black power wiring previously connected to the device.

    • Attach and re-solder the red and black power wiring.

    • For soldering help, check out iFixit's How to Solder and Desolder Connections guide.

Заключение

To reassemble your device, follow these instructions in reverse order.
