HP Stream 8 Motherboard Replacement

Автор: Nick Miller
  • Комментарии: 1
HP Stream 8 Motherboard Replacement

Сложность

Difficult

Шаги

14

Необходимое время

Нет оценки

Введение

  1. 4L5e5wRRLmNFCcUX

    • Use your nail or a spudger to pry the back cover off of the device.

    Hey bro are you have a battery for stream 8

    Kashif joiya -

  2. GcgUwKcNSLW5kPw4

    • Slide your finger around the rest of the back cover, lifting it completely off of the device.

  3. e3CA6xfNbSDX2hCW

    • Remove ten Phillips #00 screws from the inside cover.

  4. GKFySoTtrHCQ2XTN

    • Pry up the inside cover the same way as in the first step.

  5. pgjKmc5G4wE5UtEE

    • Lift up on the small black tab at the connection point to unlock the flex ribbon cable using the tweezers.

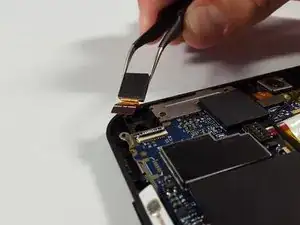

  6. 4txYEmPmPx2svFbF

    • Remove the front facing camera with tweezers.

  7. WWNNPUPCCHLLaCY5

    • Carefully pry up the gray metal piece on the end of the flex ribbon cable using tweezers.

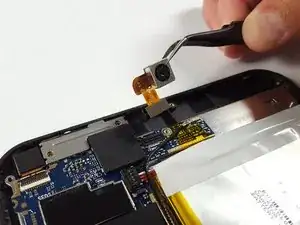

  8. VQxRrAJjtgqwqdZO

    • Remove the back facing camera with the tweezers.

  9. CSOLjMo6VeBALEaf

    • Carefully remove the battery connector from the system board using the tweezers.

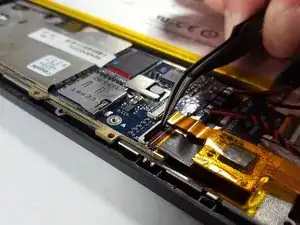

  10. 6yfoAuoq5KT5HylU

    • Lift up on the small black tab to unlock the LCD screen flex ribbon cable using the tweezers.

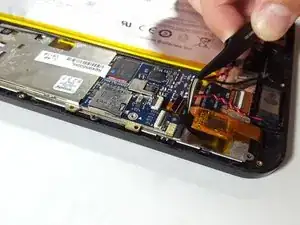

  11. c1HujURVWFP5vDQT

    • Carefully remove the LCD screen flex ribbon cable from the system board using the tweezers.

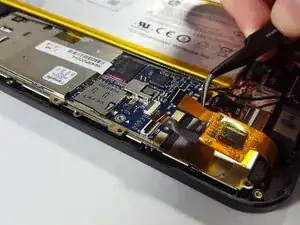

  12. 2FXPOL2YAMLbCIbK

    • Carefully remove the USB flex ribbon cable from the connection point on the system board using the tweezers.

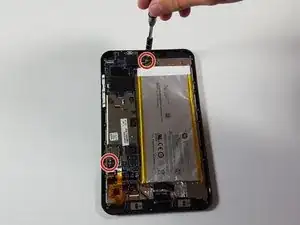

  13. aJdZoBnCJ1yPmPuP

    • Remove the two Phillips using the screwdriver with a PH00 Phillips head.

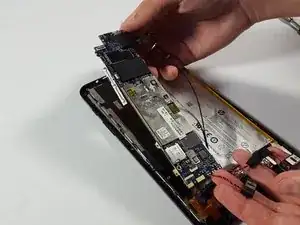

  14. 6CVWFFtkDOmOYRO2

    • Remove the motherboard from the device.

Заключение

To reassemble your device, follow these instructions in reverse order.
