HP Stream 8 Display Panel Cable Replacement

Автор: Ashley Eimers
  • Комментарии: 0
HP Stream 8 Display Panel Cable Replacement

Сложность

Easy

Шаги

7

Необходимое время

7 минут

Введение

The guide details how to replace the display panel cable. The cable is important for the communication throughout the HP Stream 8.

Инструменты

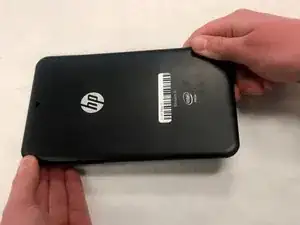

  1. EmvJGidvMOESDVYr

    • Use your nail to pry up the back cover of the device.

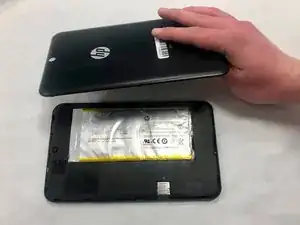

  2. dlSiSpf1cEThaDhc

    • Fully remove the back cover.

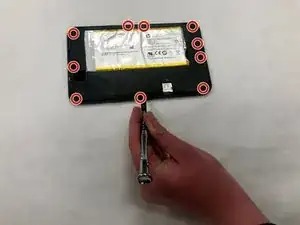

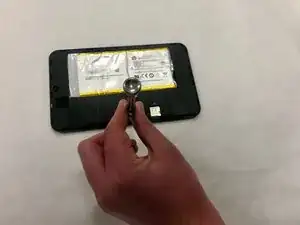

  3. 23J5tNpaS5HeqvM4
    23J5tNpaS5HeqvM4

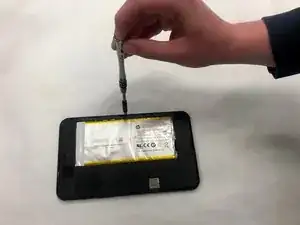

    bNHNDZNZavZn54PR
    EFUtHEjvAuW6aCIr

    • Remove the 10 3mm screws using the Phillips #00 screwdriver.

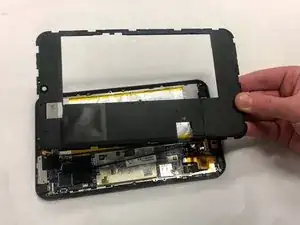

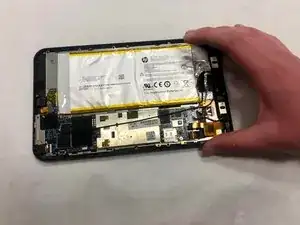

  4. FcAGZdPpRnsZc3SE
    FcAGZdPpRnsZc3SE
    kFLomDGYVcwTdBXW

    • Pry up the inside cover the same way as you did with the back cover.

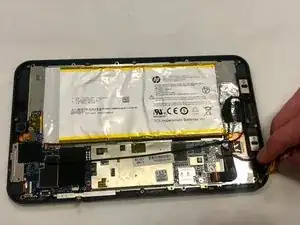

  5. BsHSLOcmPVTlINUk

    • Remove the USB flex ribbon cable from the connection point.

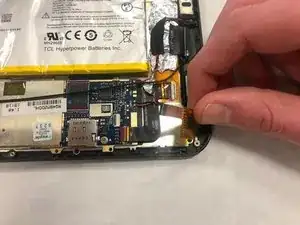

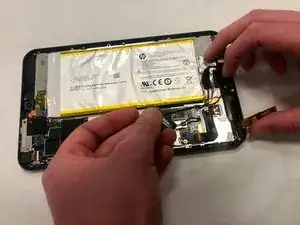

  6. IRqKO5kIsPptGjfX
    IRqKO5kIsPptGjfX
    Q4JfnWTN45NUZW3t

    • Carefully disconnect the display panel cable from the system board.

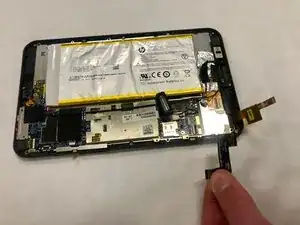

  7. Xowyjd1SKWbm4Bxs

    • Remove the display panel cable.

Заключение

To reassemble your device, follow these instructions in reverse order.
