HP Spectre 13-4002dx Vent Fan Replacement

Автор: Cayce Stewart
  • Комментарии: 1
HP Spectre 13-4002dx Vent Fan Replacement

Сложность

Easy

Шаги

6

Необходимое время

15 минут

Введение

The vent fan keeps the laptop from overheating so the laptop needs to be turned off during this procedure.

  1. 1VbOwlUDZ6aMQRxk
    1VbOwlUDZ6aMQRxk
    4MB5HJTSTBuNSSCA

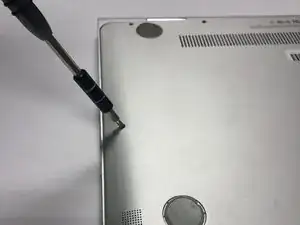

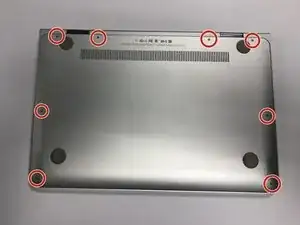

    • Using the Torx T5 screwdriver, remove the eight 8 mm screws on the bottom case of the laptop.

  2. idNXfmJ4EjvuUBeG
    idNXfmJ4EjvuUBeG
    gIBQvDdCH3AZBuJG

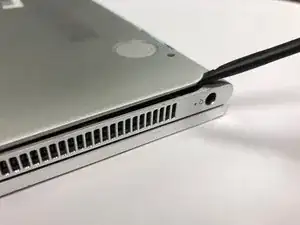

    • Pry up one corner of the bottom case with a spudger.

    • Work the spudger around the edges, making your way towards the bottom of the laptop.

    • Remove the bottom case.

  3. VAwKItN2DXfAZvvs
    VAwKItN2DXfAZvvs
    MFv6AHkQdiLPFIPn
    esbMtoITtoOigoCx

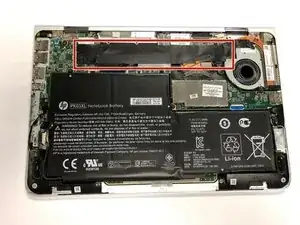

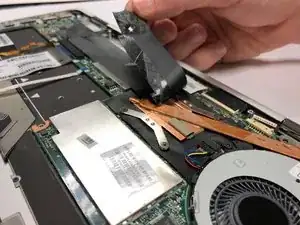

    • Remove the strip of black electrical tape.

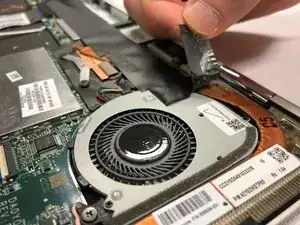

    • Pull the tape away from the vent fan.

    • Pull gently, as the tape is easy to rip.

  4. URhVyGOJMFOhZMIF
    URhVyGOJMFOhZMIF
    TiKTGcdWTDGeVxTf

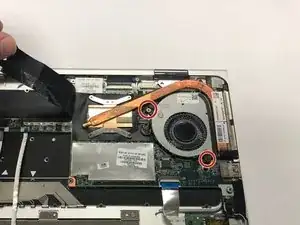

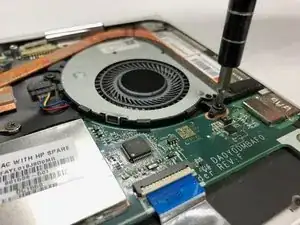

    • Using a Phillips #0 screwdriver, remove the two 40 mm screws securing the fan assembly to the motherboard.

  5. KeYFVHQnqAA5adgp
    KeYFVHQnqAA5adgp
    YHIkgX4RVASimmEH
    3JwD1oTqYSuGSYS4

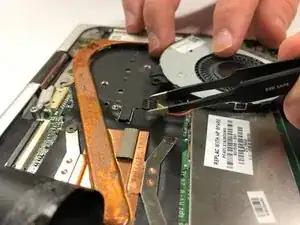

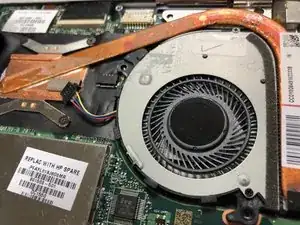

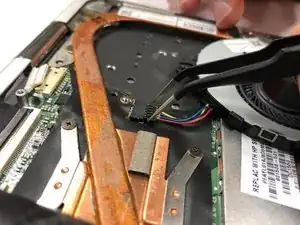

    • Using tweezers, disconnect the wire connection between the laptop and the vent fan.

  6. cStVmiVmIAtfoZJM

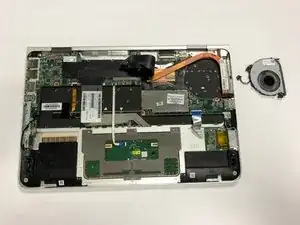

    • Remove the vent fan.

Заключение

To reassemble your device, follow these instructions in reverse order.
