This guide demonstrates how to safely remove and replace the disc drive of an HP Pavilion DV2913CL Laptop in order to preserve the function of the device.

Инструменты

  1. 2ImMH6e1omOgZi11
    • Remove the two Phillips screws located on the back of the laptop.

  2. gEhNUxNpJDpDcWAj

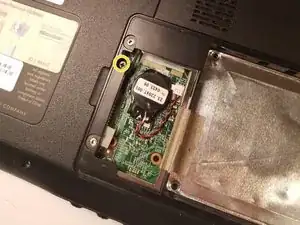

    • Remove the plastic panel to reveal a second Phillips head screw.

    • Remove the screw shown below: this holds the disc drive in place.

  3. 1JiFYrJURDVlyD2t

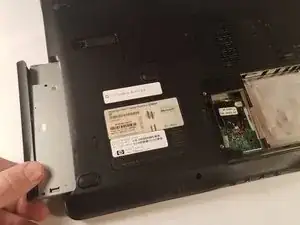

    • Slide the disc drive out of the laptop.

Заключение

To reassemble your device, follow these instructions in reverse order.
