HP Pavilion DV2160BR Hard Drive Replacement

Автор: Shannon
  • Комментарии: 0
HP Pavilion DV2160BR Hard Drive Replacement

Сложность

Easy

Шаги

5

Необходимое время

5 минут

Введение

The Hard Drive this computer comes with has 120GB of space and runs at 5400 RPM. Accessing the Hard Drive is simple and requires removing a total of only 4 screws.

Инструменты

  1. sDSAfRbNrCIEQrQv
    sDSAfRbNrCIEQrQv
    bj2i5mpvN5yvikDj

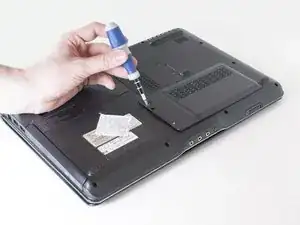

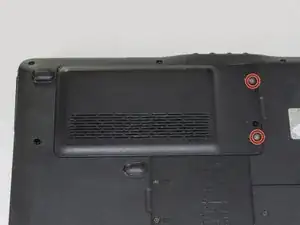

    • Start with the bottom of the laptop facing up.

    • Locate the panel covering the hard drive compartment.

    • Unscrew the two 5mm Phillips #0 screws.

  2. vpRKyZb4sQRtYbnb

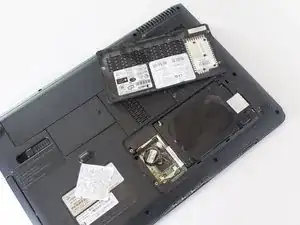

    • Lift up this external panel by the end with the screws and set it aside.

    • Be careful about the four plastic tabs holding the panel on the device.

  3. qOUcrVnhCX1KlexP
    qOUcrVnhCX1KlexP
    gguPihwS3Xee2jWY

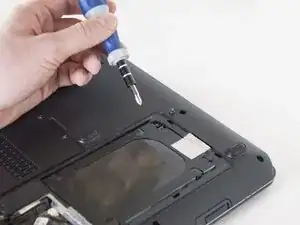

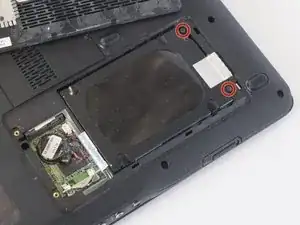

    • Locate the second plastic panel covering the hard drive.

    • Unscrew the two 4mm Phillips #0 screws holding it in.

  4. XATY3DGfNx5AMDJZ

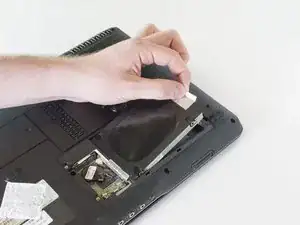

    • Lift up this internal panel using the plastic white tab and set it aside.

  5. 3JKTWPn4BSrDE521
    3JKTWPn4BSrDE521
    yOkEcmjP4CvXlVXM
    mvKhLwBn1qqEuTCJ

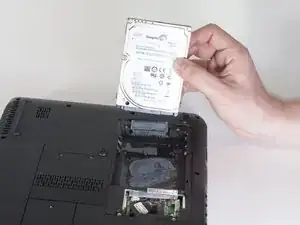

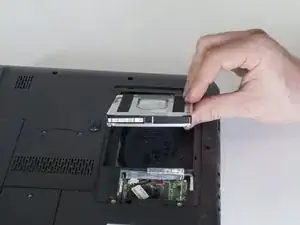

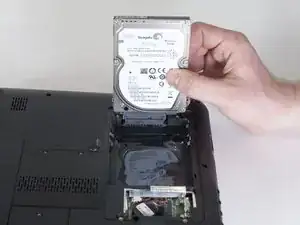

    • Grab the end of the hard drive and pull it up to a vertical position.

    • Gently slide the Hard Drive off of the SATA connector.

    • Warning: Don’t wiggle the SATA connector or the top piece will come off. If it does, reconnect it vertically.

Заключение

To reassemble your device, follow these instructions in reverse order.
